Afstandssensor Laser - Time of Flight - VL6180X

HomeSensorenAfstandsensoren
X
Afstandssensor Laser - Time of Flight - VL6180X
Afstandssensor Laser - Time of Flight - VL6180X
Afstandssensor Laser - Time of Flight - VL6180X
Afstandssensor Laser - Time of Flight - VL6180X
Prijs:
15,95 €
incl. BTW, excl. verzending
Aantal:
In stock Direct uit voorraad leverbaar
Snel en voordelig verzonden
Verzendkosten voor kleine artikelen 2,95 €.
Boven 30,00 € gratis.
Veilig betalen
Klanten geven Bits & Parts een 9,2/10 Link naar Kiyoh

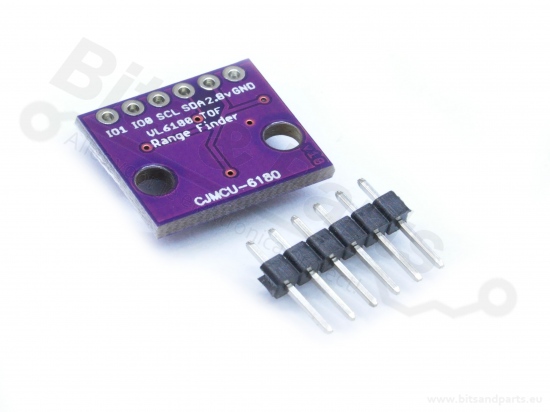

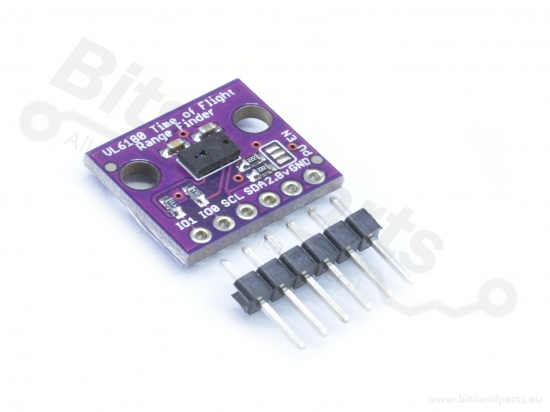

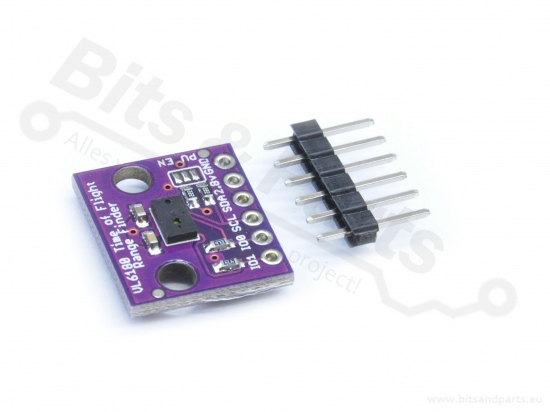

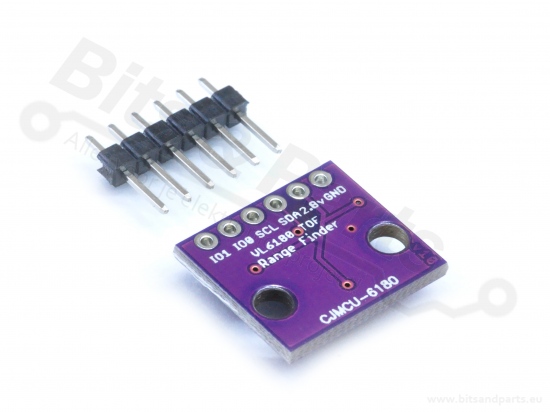

Afstandssensor Laser - Time of Flight - VL6180X

Productinformatie:

The VL6180X is a Time of Flight distance sensor like no other you've used! The sensor contains a very tiny invisible laser source, and a matching sensor. The VL6180X can detect the "time of flight", or how long the light has taken to bounce back to the sensor. Since it uses a very narrow light source, it is good for determining distance of only the surface directly in front of it. Unlike sonars that bounce ultrasonic waves, the 'cone' of sensing is very narrow. Unlike IR distance sensors that try to measure the amount of light bounced, the VL53L0x is much more precise and doesn't have linearity problems or 'double imaging' where you can't tell if an object is very far or very close.

This sensor can handle about 5mm - 200 mm of range distance. It also includes a lux sensor. If you need a bigger range, check out the VL53L0X which can measure 50mm to 1200mm.

Voedingsspanning: 2,8V
Signalen: 2,8V!
