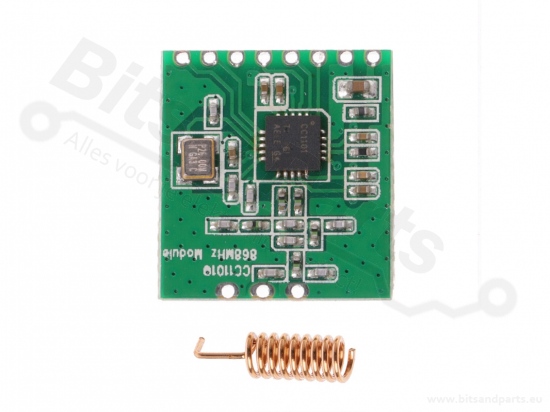

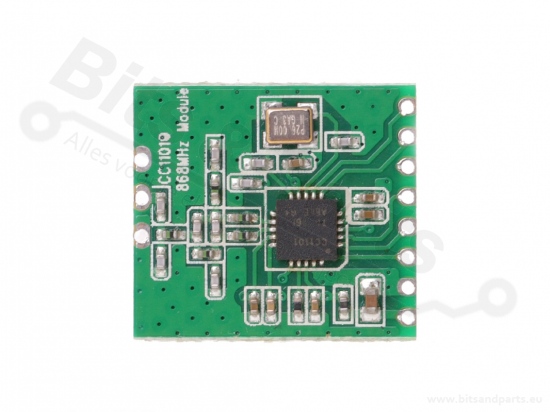

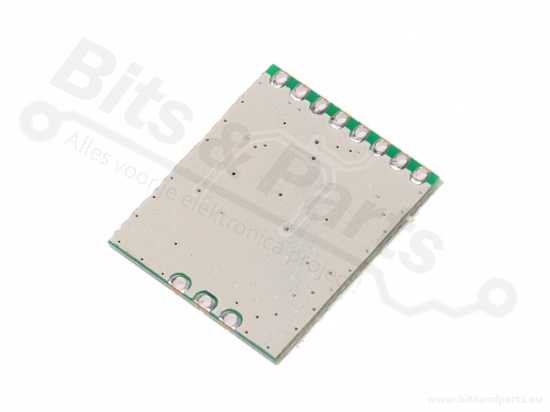

RF Transceiver 868MHz CC1101 met antenne

HomeCommunicatie, WiFi, Bluetooth & USBRF
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
RF Transceiver 868MHz CC1101 met antenne
Prijs:
6,95 €
incl. BTW, excl. verzending
Dit artikel is binnenkort weer leverbaar!

RF Transceiver 868MHz CC1101 met antenne

Productinformatie:

The CC1101 is a 868 MHz transciever module. The CC1101 module has a maximum range of 300 meters in the open field and a sensitivity of approx. -112 dBm. For communication, an SPI interface is available.

Specificaties:

IC: CC1101
Operating voltage: 1,8V - 3,6V
Current consumption: max. 25mA (load), 200nA (sleep)
Logic level: 3.3V

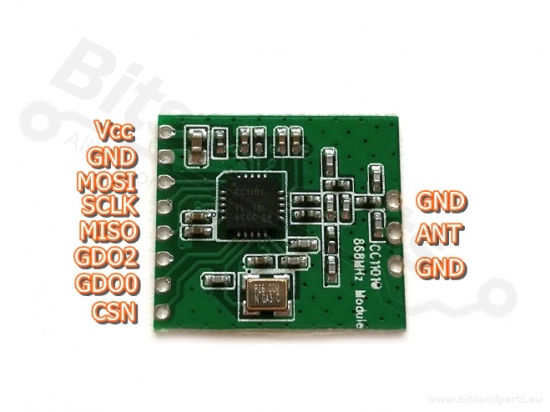

Interface: SPI
Radio frequency: 868MHz
Range: 300m free field
Sensitivity: about -112 dBm

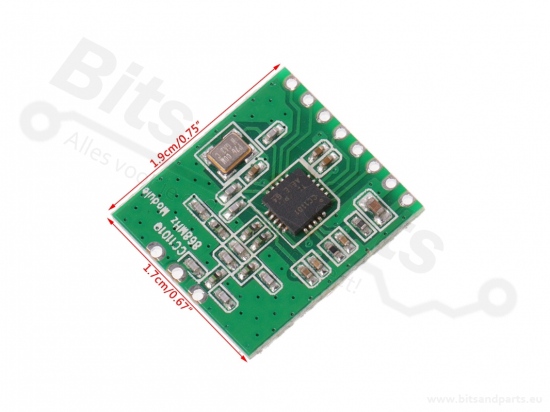

Size: 1,9 x 1,7cm

Arduino library: https://github.com/veonik/arduino-cc1101

Klik om de website van dit product te openen.Klik om de website van dit product te openen.

Documentatie

:
Specificaties / Datasheet (engels):
cc1101-Chipcon-Transciever.pdf
