Motor DC 3-7,5V for smart cars and robots with speed encoder

Motor DC 3-7,5V for smart cars and robots with speed encoder

Product information:

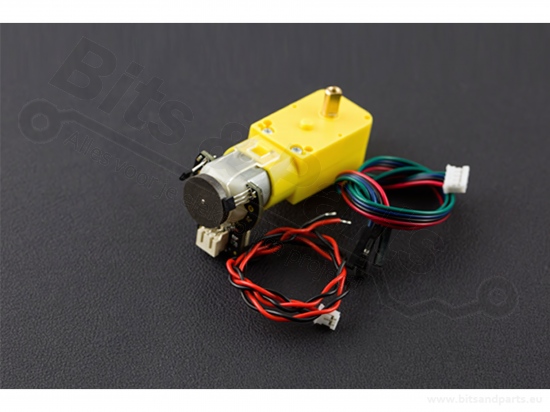

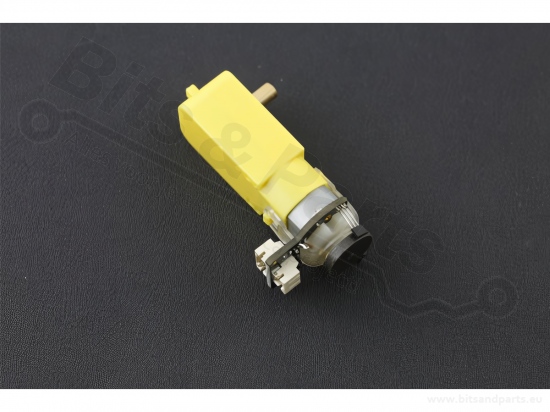

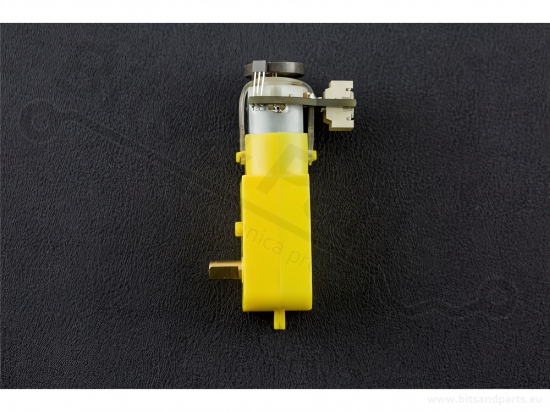

This is the DFRobot Micro DC geared motor with encoder. It is a motor with a 120:1 gearbox and an integrated quadrature encoder that provides a resolution of 16 pulse single per round giving a maximum output of 1920 within one round.

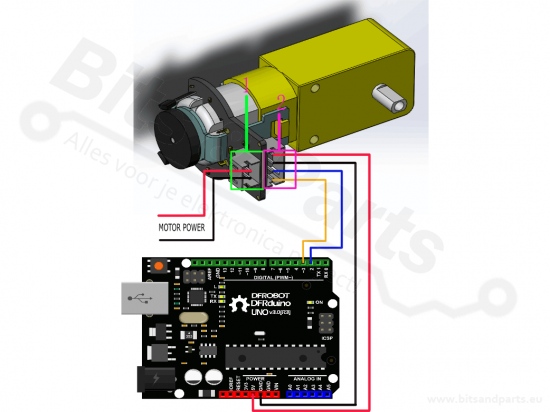

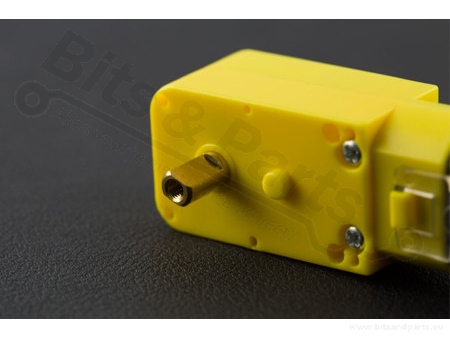

With an Arduino controller and motor driver, applications for this might include a closed-loop PID control or PWM motor speed control. This motor is an ideal option for mobile robot projects. The copper output shaft, embedded thread and reinforced connector greatly extends the motor's service life.

Overbrenging: 120:1
Nominale stroom: 170mA

Click to view the product's website.
