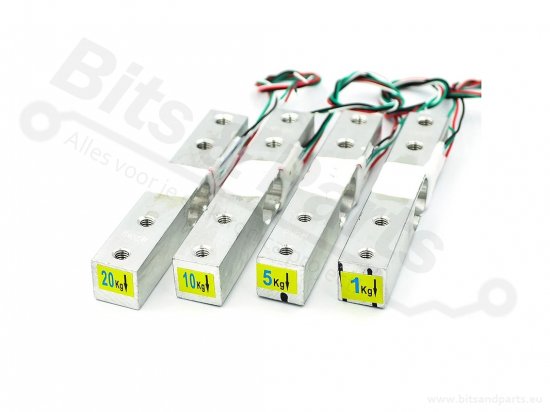

Weight sensor / Weigh cell / Load cell Bar 1kg

Weight sensor / Weigh cell / Load cell Bar 1kg

Product information:

This micro load cell is a compact and accurate weight sensor with a maximum capacity of 1 kg. With an output sensitivity of 1.0 mV/V, low deviation, and a robust metal housing, it is ideal for applications such as electronic scales or measurement projects.
The sensor operates within a temperature range of -10 to +50°C, has high insulation resistance, and supports a supply voltage of 5 to 10V. Its small size makes it easy to integrate into various systems.

Features:

- Capacity: 1 kg
- Compact and accurate – ideal for electronic scales and precision applications
- Solid metal housing, suitable for long-term use

Specifications:

- Dimensions: 80 × 13.5 × 13.5 mm
- Output sensitivity: 1.0 ± 0.1 mV/V
- Zero output: ± 0.1 mV/V
- Non-linearity: 0.05% FS
- Repeatability: 0.05% FS
- Creep: 0.05% FS / 3 min
- Output impedance: 1000 ± 50 Ω
- Input resistance: 1000 ± 50 Ω
- Zero temperature drift: 0.2% FS / 10°C
- Drift (zero drift): 0.05% FS / 10°C
- Insulation resistance: ≥ 2000 MΩ (at 100VDC)
- Recommended supply voltage: 5–10V
- Operating temperature: -10 ~ +50°C
- Maximum load: 150% FS

Perfect for applications such as smart kitchen scales, industrial measuring systems, or DIY electronics projects that require weight measurement.
