Accelerometer 3-way digital - ADXL346 (GY-346)

Accelerometer 3-way digital - ADXL346 (GY-346)

Product information:

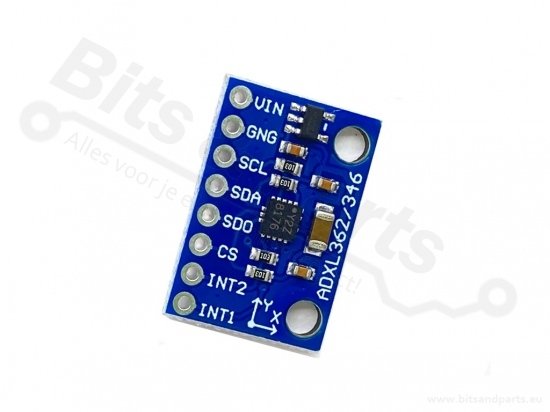

The ADXL346 is a high resolution (13bit) 3-axis digital accelerometer.
The data can be read out through the digital SPI or I2C interfaces, making the ADXL346 sensor very suitable for use in Arduino projects.
It is suitable for both measuring static acceleration (such as tilt measurement) and measuring dynamic acceleration due to movements or shocks. The high resolution allows you to measure angles of less than 1.0 degrees.
The sensor has an exceptionally low power consumption and can measure accelerations between -16g and +16g.

Also suitable for tap/double tap detection and free fall detection. Just google 'ADXL346 and Arduino' for the many possibilities, code and libraries.

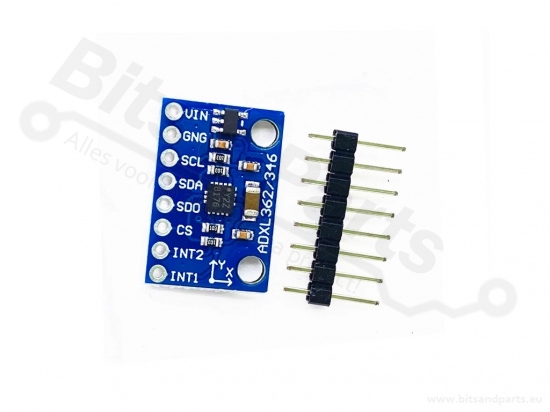

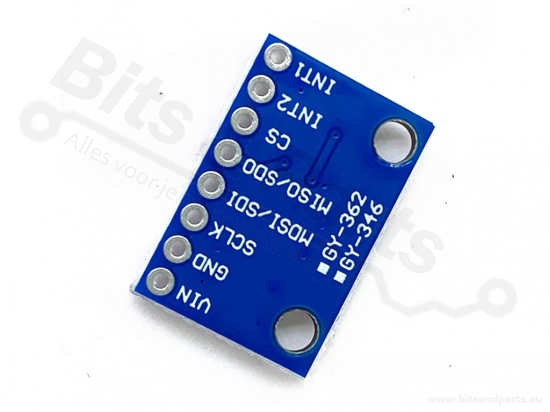

The header pins are supplied loose so you can mount them as you like. The pinouts are printed on the board.

Attention! The inputs of the ADXL346 are not 5V tolerant. So use 3.3V signals or use a level converter (see additional articles).

View the datasheet PDF for more information about the ADXL346 accelerometer.
