Adjustable resistance / linear potentiometer 10K - 30mm - Crowtail - Elecro

Adjustable resistance / linear potentiometer 10K - 30mm - Crowtail - Elecro

Product information:

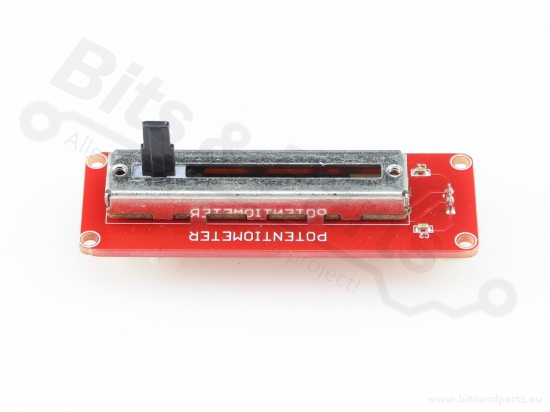

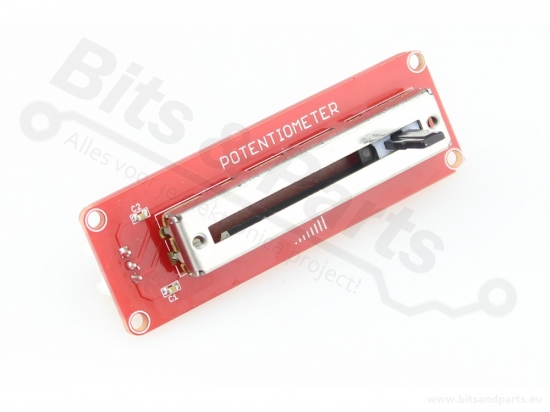

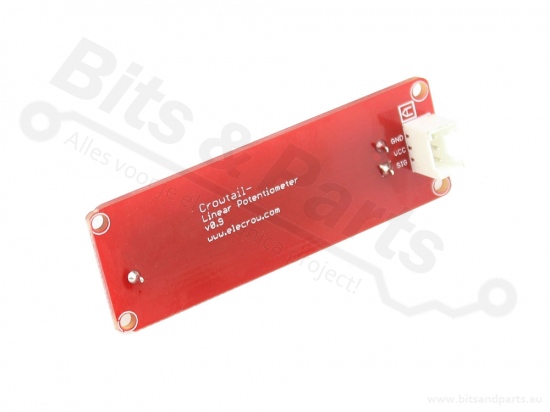

The Crowtail- Linear Potentiometer module uses a linear variable resistor with a maximum resistance of 10KΩ. When you move the slider from one side to the other, its output voltage will range from 0 V to the Vcc you applied. The panel mount design makes this module easy to be installed in projects.

Features:

- Connection Mode:A(Analog)
- 30mm long slide length
- Linear resistance taper
- Dimensions(mm): 60.0(L) x 20.0(W) x 18.0(H)

Crowtail is Elecrow’s modular “plug-and-play” ecosystem that allows you to quickly connect and control components/boards with a single set of compatible hardware.
