Arduino FM Receiver TEA5767
Product information:
The TEA5767HN is a single-chip electronically tuned FM stereo radio for low-voltage applications with fully integrated Intermediate Frequency (IF) selectivity and demodulation. There are many projects and shares such as the simtronyx and electronics-lab for the Arduino users. This Arduino FM Receiver is based on the chip TEA5767HN, it incorporated all the necessary circuit includes power circuit, antenna, amplifier and AGC circuit, to help the users build their own Arduino FM receiver easily. We have also prepared 2 kinds of antennas for you, to ensure you get the best results.
Features:
High sensitivity(low noise RF input amplifier)
Frequency range: 76-108MHZ
High power auto gain control AGC circuit
LC harmonic oscillator use low cost fixed chip
No need to adjust Intermediate frequency
Soft mute
Specifications:
Power: 5V
PCB size: 31*30mm
With reverse polarity protection diode
With power output filtering sensor
Multi capacitor combined filter
Blue LED power indicator
Directly plug antenna interface

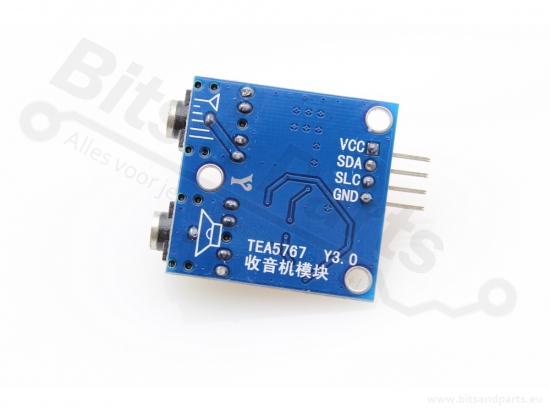

I2C bus communication

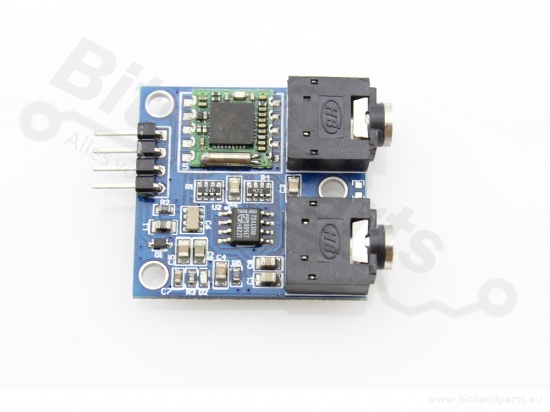

FM chip module TEA5767
Onboard 3.5mm audio interface

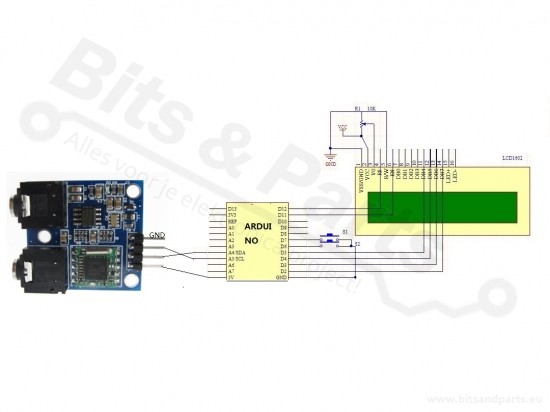

If connects with singlechip, only connect the Power Ground and two I2C communication cable.
Partlist:
FM Receiver Module x1

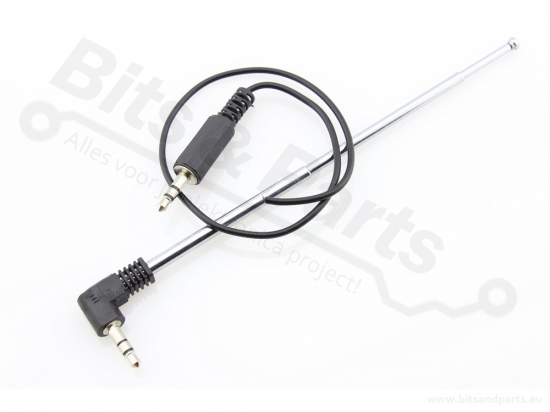

Wire Antenna x1
Rod Antenna
