Arduino Pro Micro Mini Leonardo ATmega32U4 5V/16MHz (compatible clone)

Product information:

This Pro Micro (compatible clone) resembles the Pro Mini, but the Micro has a USB transceiver in the ATmega32U4, making USB communication an option. This Arduino can pretend to be a keyboard or mouse.
The onboard voltage regulator makes it possible to connect a supply voltage of up to 12V (on the RAW pin).

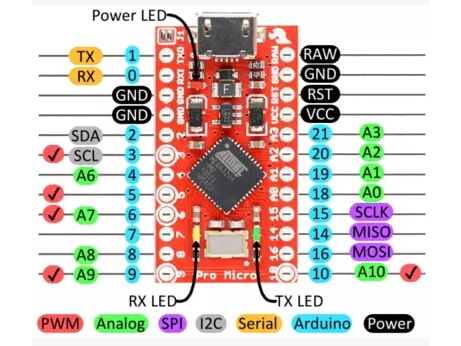

Check out the 3rd photo for the pinout of this ATmega32u4 board.

Specifications:

- On-board Micro-USB connector for programming with, among others. the Arduino IDE without the intervention of a serial-USB converter.
- ATMega 32U4 running at 5V/16MHz
- Supported from Arduino IDE v1.0.1
- 4 x 10-bit ADC pins
- 12x Digital I/Os (5 with PWM option)
- RX and TX Hardware serial connection
