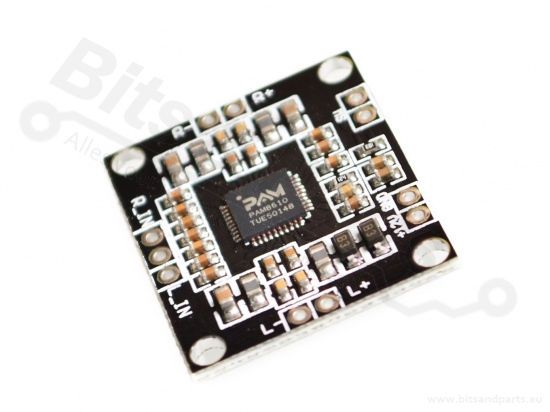

Audio amplifier mini 2x15W stereo PAM8610
Product information:
Compact 2x15W stereo sound amplifier to drive 4 or 8 Ohm speakers. Easy to connect.

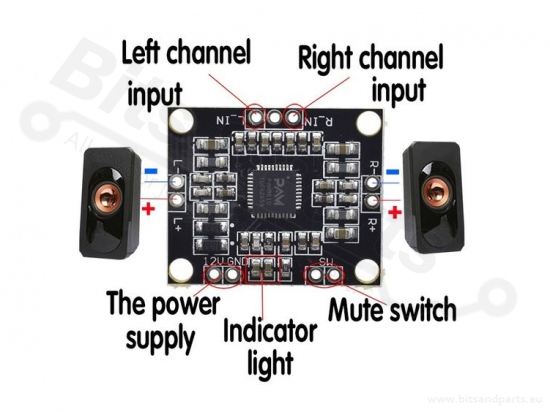

Connections: see last image.
Technical parameters:
- Supply voltage: 7V - 15VDC
- Quiescent current; 20mA
- SNR: 86%
- Output power: 10w + 10w (8 load)
- Efficiency: 90%
- Switch-off current: 4uA
- Input impedance: 15K
- Output impedance: 4-8 Ohm
- Total harmonic distortion: 5W / 1 KHz / 8 - 0.1%
- Frequency range: 20Hz-20 KHz
- Dimensions: 30mm x 25mm x 2.5mm
How to use:
- The power supply limit is 16.5V, do not use more than this voltage.
- 4-8 inch stereo speakers recommended.
- Do not short the audio output together or short it to ground.
- Recommended power supply 12V/3A
- Carefully check that everything is connected correctly before turning it on.
>
