Automatic temperature controller W3230 with display 24VDC (relay)

Automatic temperature controller W3230 with display 24VDC (relay)

Product information:

Automatic W3230 built-in temperature controller with a 24 volt DC power supply.

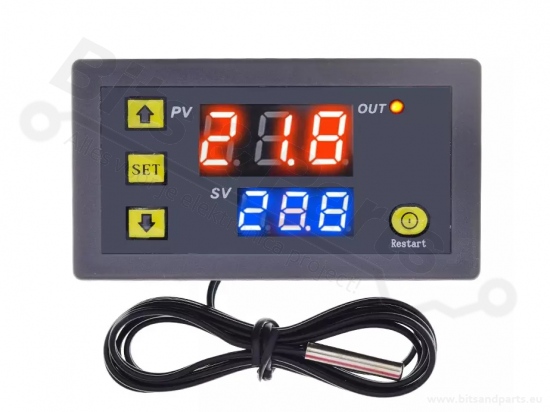

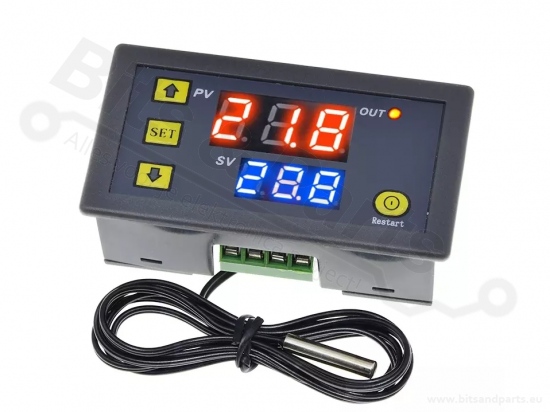

The display shows the current (PV) and set (SV) temperature values. The OUT light indicates whether the relay is switched on.

Temperature range: -50°C - 120°C
Resolution: 0.1°C (at -9.9°C - 99.9°C) - 1°C (at other values).

Accuracy: 0.1°C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5s

Power supply: 24VDC

Sensor: NTC (10K 0.5%) waterproof, 1 meter.

Relay output: max. 10A

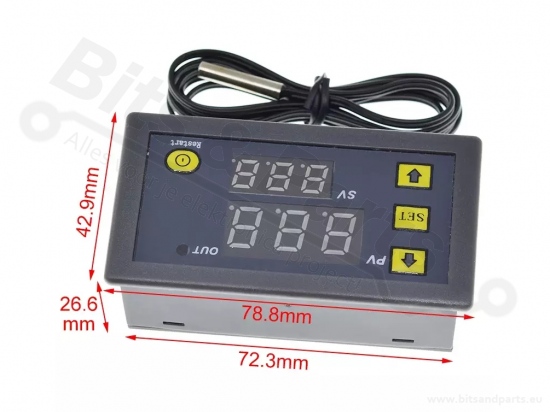

Dimensions: 79mm x 43mm x 26mm
