Battery capacity meter/display for 3S lithium battery pack green
Product information:

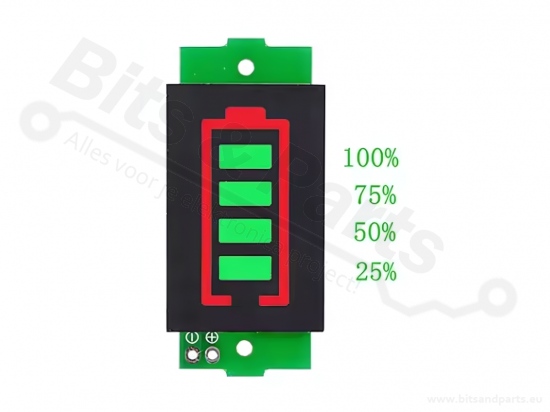

This capacity meter indicates the remaining capacity of a 3S lithium battery pack.
When the battery voltage is more than N*3.3V, 1 block of the display will light up.
When the battery voltage is more than N*3.5V, 2 blocks of the display will light up.
When the battery voltage is more than N*3.7V, 3 blocks of the display will light up.
When the battery voltage is more than N*3.9V, 4 blocks of the display will light up.
Below N*3.3V the edge of the battery icon will light up red.
(Note: N represents the amount of batteries in the pack, in this case 3.)
Display color: green

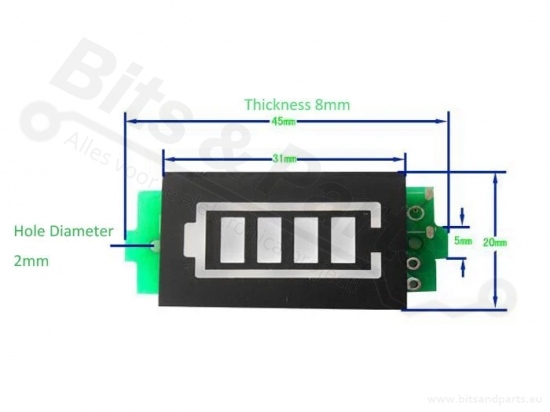

Display dimensions: 31mm x 20mm
Dimensions incl. board: 45mm x 20mm
>
