Charger for LiIon/LiPoly batteries MicroUSB TP4056

Product information:

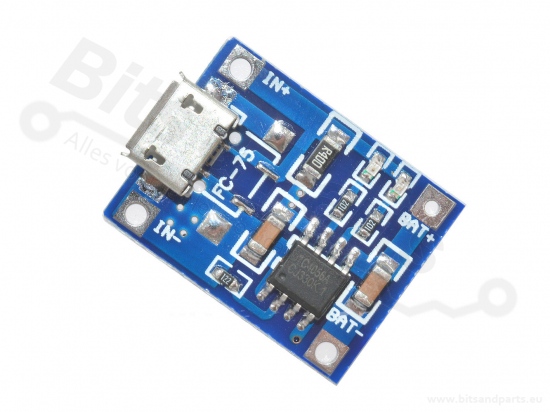

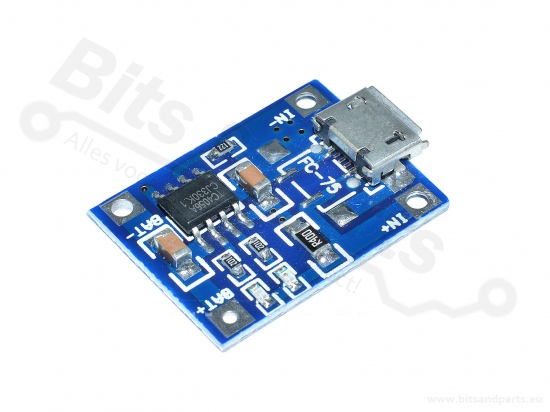

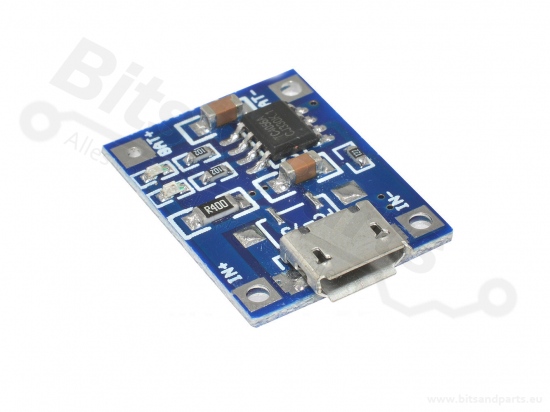

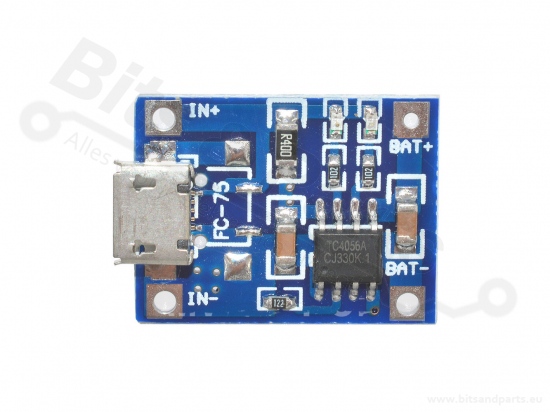

Small charger to charge lithium batteries from a USB connection. A red LED indicates that the battery is charging. The blue LED indicates that the battery is full.
A battery is best charged at 37% of its capacity. A 1000mAh battery is best charged at 400mA.

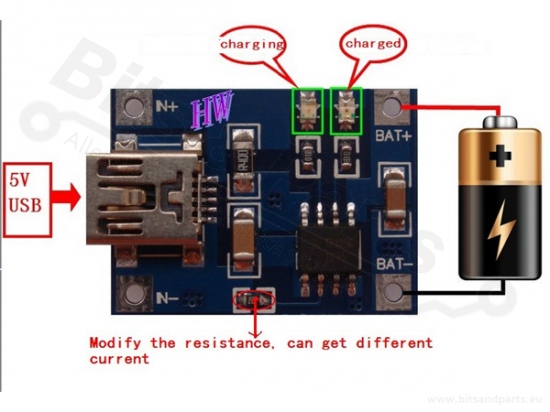

By default the charging current is set to 1000mA. This can be changed by changing a resistor according to the last picture and table below.

- Charging current up to 1A (adjustable).
- Supply voltage: 4.5 - 5.5V.
- Charges a battery up to 4.2V.
- Dimensions: 25x19x10mm

Please note! The connecting wires must not be too thick.
When the input voltage is greater than 5.2V, the charging current will be less than 1000mA to protect the chip.


Resistance (kOhm) Charging current (mA)
30 50
20 70
10 130
5 250
4 300
3 400
2 580
1.66 690
1.5 780
1,33 900
1,2 1000 (standard)
