Price:
9,95
incl. tax, excl. shipping
This article is temporarily unavailable.

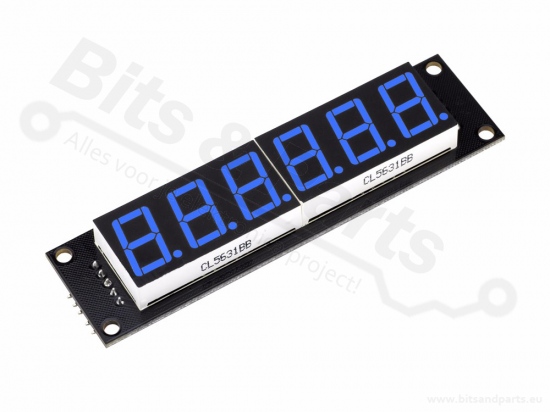

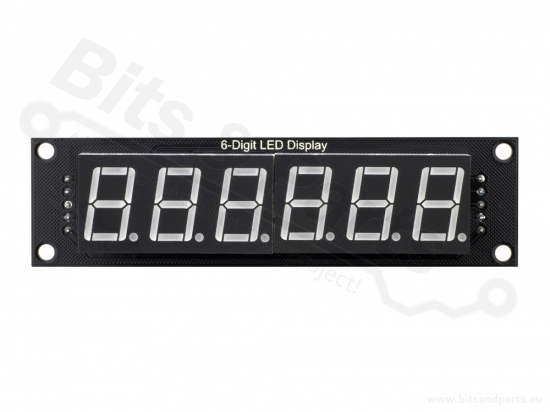

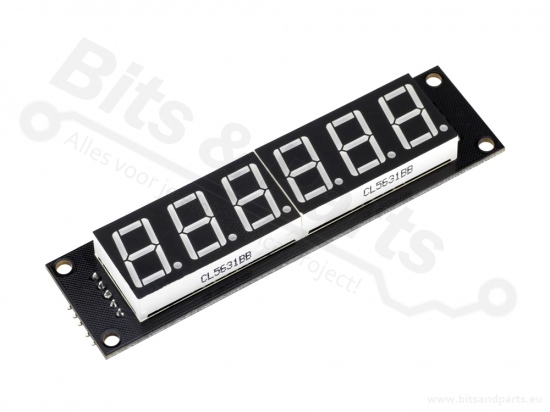

Digit display 6-Digit 7-segments 74HC595 blue - 75x19mm

Product information:

To control individual segments and numbers.
Brightness can be adjusted by software.

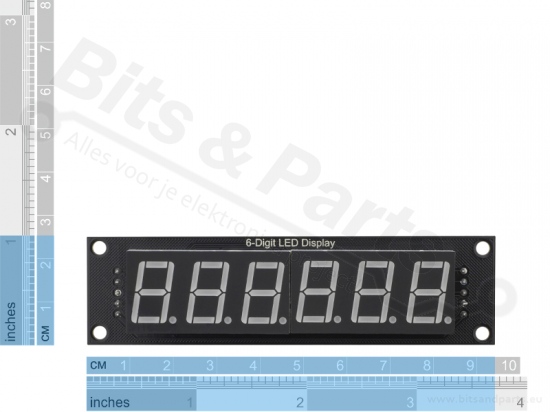

Total board dimensions: 66x28x12mm.
Display dimensions: 50x19.5x7.8mm
Height of digits: 14mm (0.56inch)

Voltage: 5V

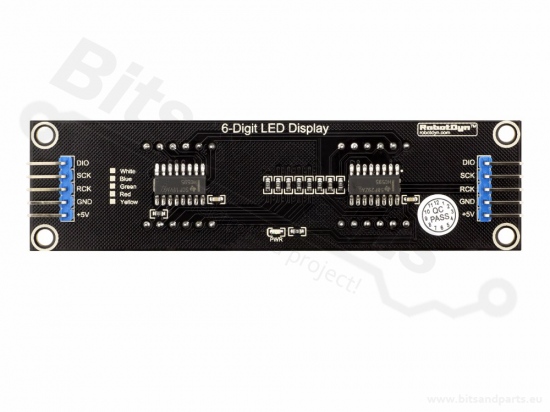

Interface:
GND - ground
5V - power supply
DIO - data input and output
CLK - clock signal

Connecting to Arduino:
GNG -> GND
5V -> 5V
DIO -> D5
CLK-> D4

Download the library from the website link below and install it in the Arduino IDE program by adding a library from the .zip file. Now the folder SevenSegmentTM1637 appears under the examples.
