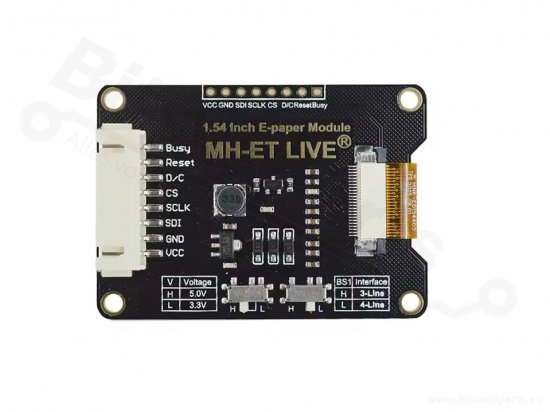

Display E-Paper 1,54inch 200x200px MH-ET Live black/red with controller

Display E-Paper 1,54inch 200x200px MH-ET Live black/red with controller

Product information:

The MH-ET Live 1.54 inch E-Paper display (black/white) is an energy-efficient display with a resolution of 200 × 200px pixels, ideal for projects that require an easy-to-read display with minimal power consumption.

Thanks to e-ink technology, the image remains visible without continuous power. The display only consumes power during refresh and consumes virtually nothing in sleep mode. This makes it perfect for applications such as weather stations, clocks, dashboards, labels, and IoT projects based on Arduino, ESP32, or Raspberry Pi.

The display communicates via 3-wire or 4-wire SPI, making it easy to integrate into microcontroller projects.

Supplied with mounting plate, spacers, bolts and header pins.

Display type: E-paper
Display size: 1.54 inch
Colors: black/white
Voltage: 2.8V - 5.3V
Communication interface: 3-wire SPI, 4-wire SPI
Resolution: 100px x 100px
Viewing angle: 170°
Backlight: No, the display is illuminated by the environment.
Consumption in sleep mode: <0.01µA
Consumption during refresh: 26.4mW

Works with the GxEPD2 library:
https://github.com/ZinggJM/GxEPD2/tree/master

Example:
https://github.com/aBoyCanDream/2.13-E-Ink-with-GxEPD2-example
