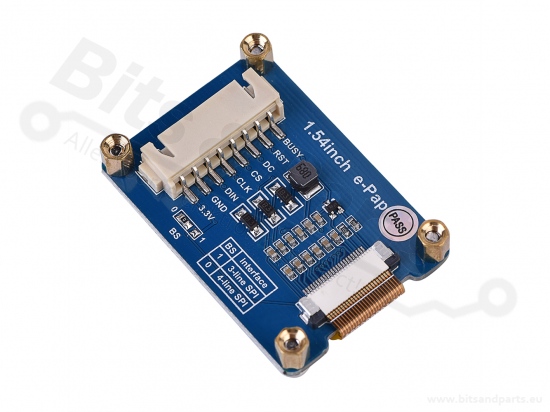

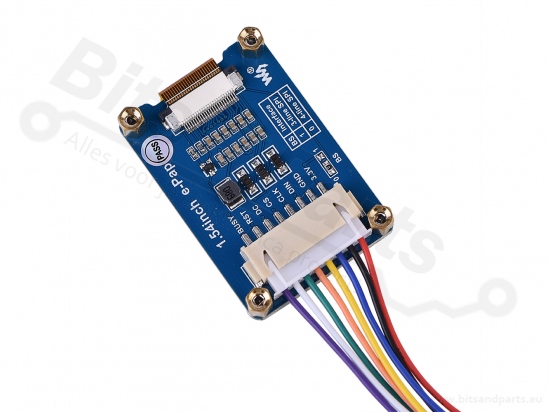

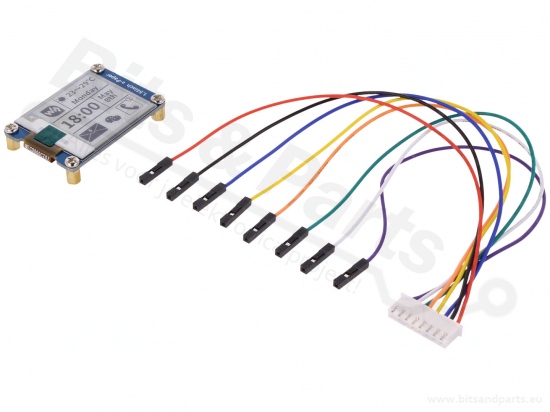

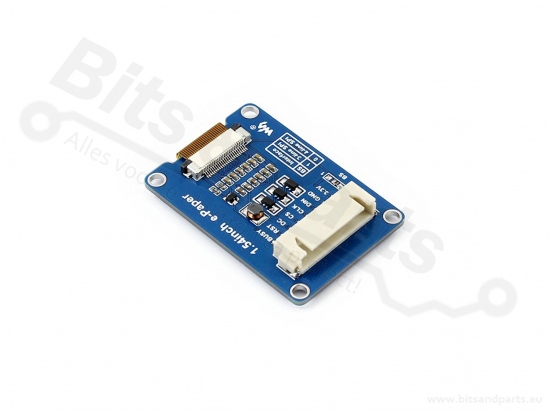

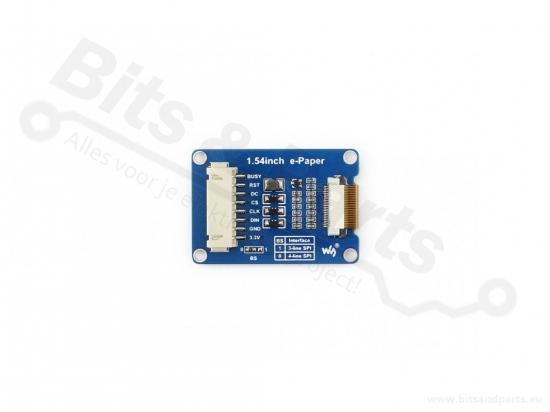

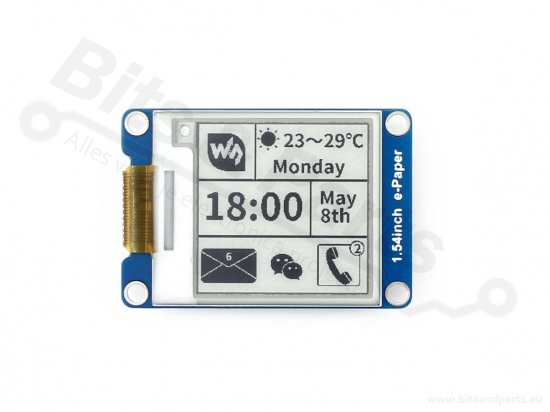

Display E-Paper Waveshare 1.54 inch 200x200px with controller

Display E-Paper Waveshare 1.54 inch 200x200px with controller

Product information:

E-Paper/ E-ink display, 1.54inch, 200x200 pixels resolution with controller, communicating via a SPI interface.

- Ultra low power consumption (only when refreshing)
- Wide viewing angle
- No backlight, the image remains even when the power is off
- With SPI for connection to Raspbery Pi/ Arduino / Nucleo / STM32)
- With Arduino and Raspberry Pi library and code examples (see under 'Documentation')

Specifications:
- Screen size: 1.54"
- Display resolution: 200x200 pixels
- Window size (hxw): 27.6 x 27.6mm

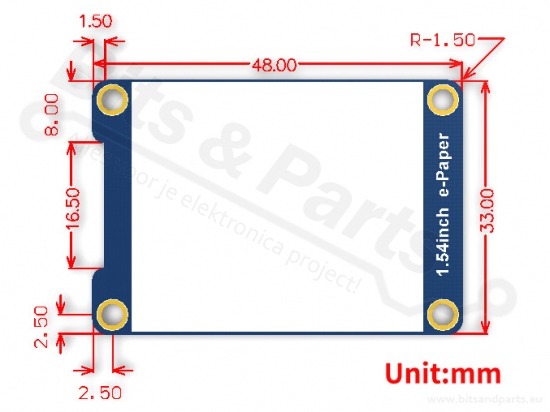

- Board dimensions: 48 x 33 x 9.5mm
- Color: black/white
- Supply voltage: 3.3V DC
- Interface: 3/4-wire SPI (convertible to 4 with solder bridge)

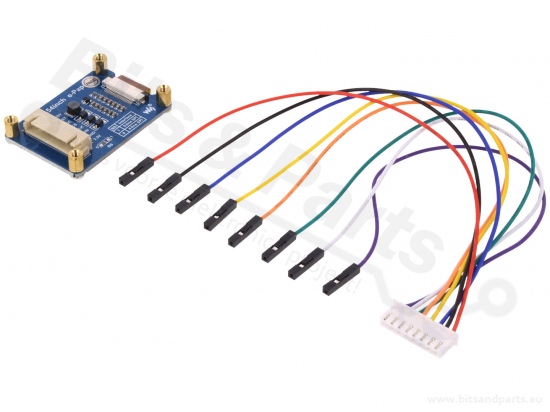

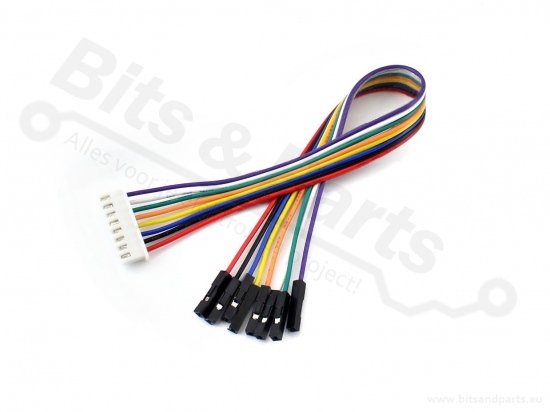

Comes with controller and cables.
For connecting to an Arduino or Raspberry Pi, male-male Dupont cables are very useful (see additional articles).

Watch a demo at: https://www.youtube.com/watch?v=-XbwDC2AOOw
