Display OLED 128x64 1.3 Inch I2C White

Product information:

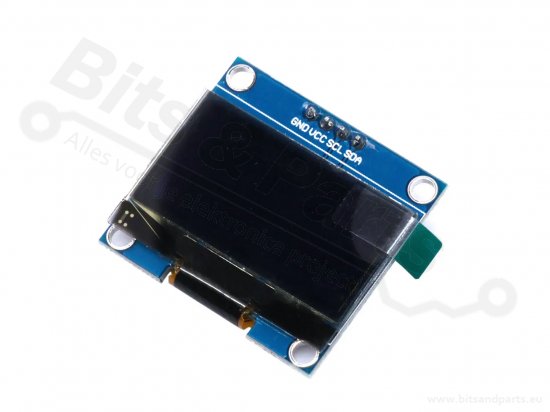

This white OLED display (128x64 pixels) is a compact and energy-efficient screen with a high resolution and wide viewing angle. Thanks to the built-in SH1106 driver chip (compatible with SSD1306), it offers excellent display quality under almost all conditions.

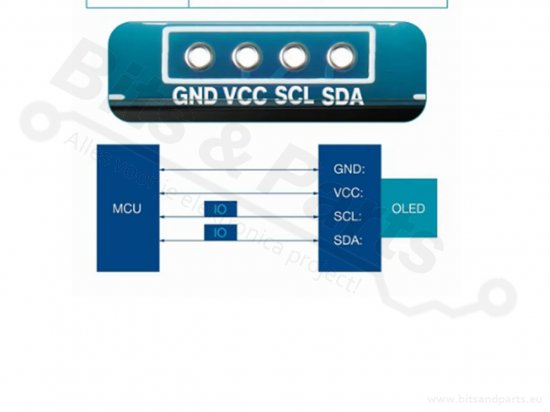

The display operates at both 3.3V and 5V and supports multiple communication modes including I2C, 3-wire SPI and 4-wire SPI, making it suitable for a wide range of microcontroller projects.

With a viewing angle of over 160°, extremely low power consumption of only 0.08W, and an operating temperature of -30°C to 70°C, this display is ideal for all applications.

With presoldered pins.

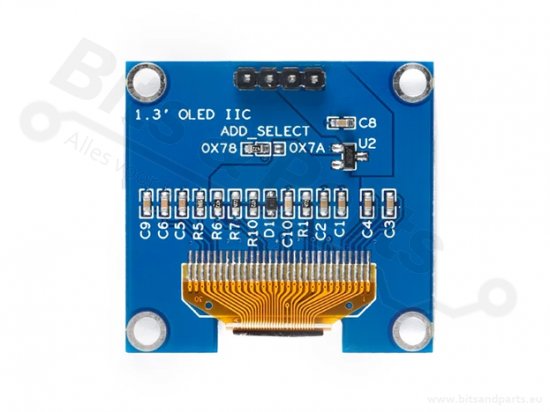

Attention! Check the positions of VCC and GND on the board. These may differ from the photos.
