ESP8266 NodeMCU Motor shield

Product information:

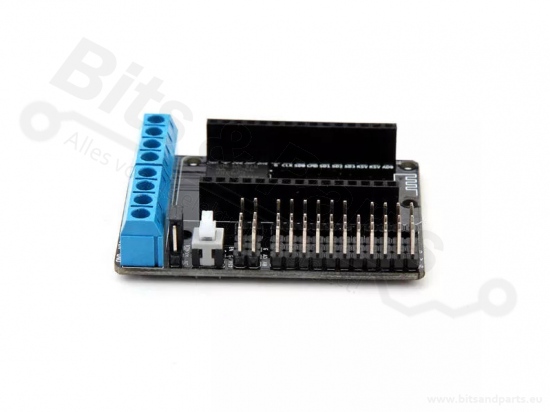

Motor shield for an ESP8266 NodeMCU module.

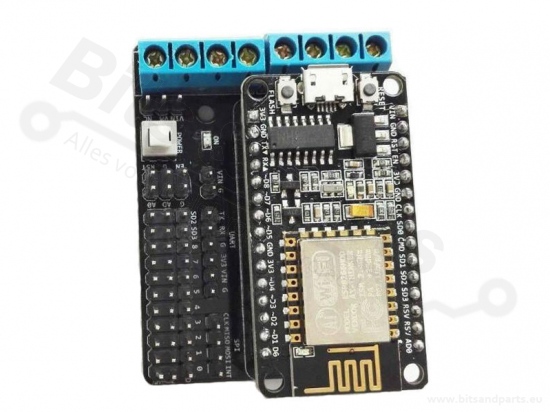

In this case, the NodeMCU is pressed onto the shield.
With L293D motor driver for controlling 2 DC motors on so-called smart cars.

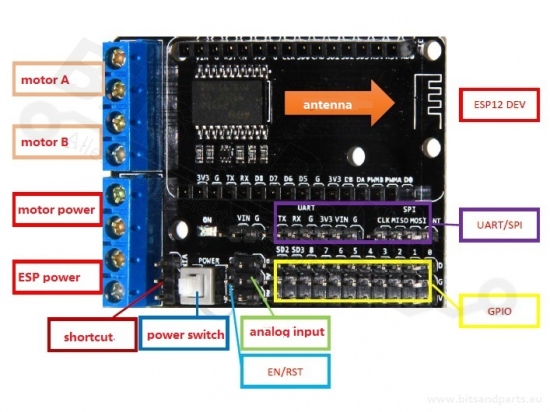

There are header pins for all UART/SPI and GPIO pins of the ESP8266. See the last image for all connections.

Motor voltage: 4.5VDC-36VDC.
Board voltage: 4.5V-9V

For more information, see:
https://smartarduino.gitbooks.io/user-mannual-for-esp-12e-motor-shield/content/interface.html
