Product information:

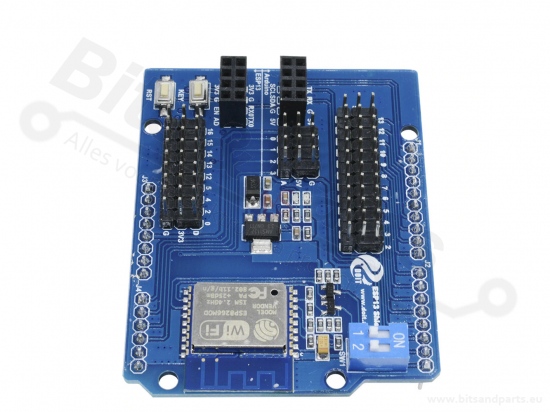

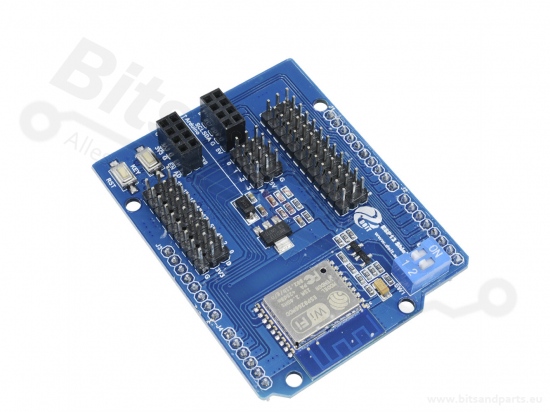

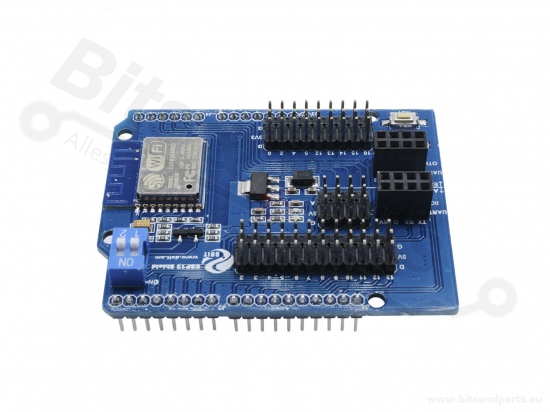

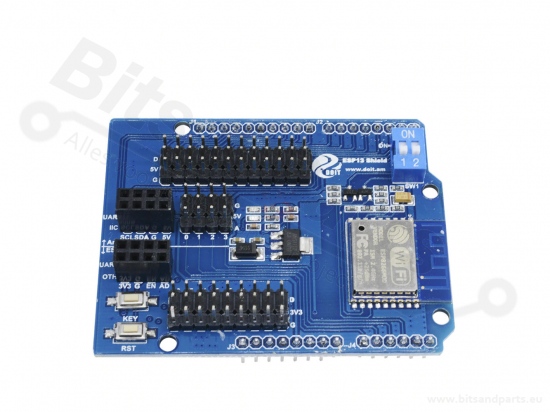

Shield with an ESP8266 ESP-13 wifi module. A built-in voltage converter ensures smooth communication between the Arduino and the ESP8266.
With the module in server mode, it can be accessed by clients on a set port and pass on the data sent by the Arduino.
With the module in client mode, it connects to a server itself and passes on the data sent by the Arduino.

With the DIP switches in the OFF position, the Arduino is connected to the USB COM port and you can program the Arduino.
In the ON state, the Arduino is connected to the ESP8266 and you can send and receive data to the ESP8266 using the Serial commands in the Arduino IDE.

For all pins of the Arduino and the ESP8266 header pins are provided so that connecting sensors is easy. There are also header pins for the RX/TX of the Arduino and ESP8266.

With a red power LED and a blue wifi LED.

For examples and configuration, please see the website link below.

The easiest way to configure the ESP8266 is to connect a smartphone to the shield on the network 'DoitWiFi_Config'. Then go to http://192.168.4.1 in the browser of the smartphone for the configuration page.
If you have made an incorrect setting and can no longer access the configuration, press the KEY button on the shield for more than 1 second and reconnect to the network.
