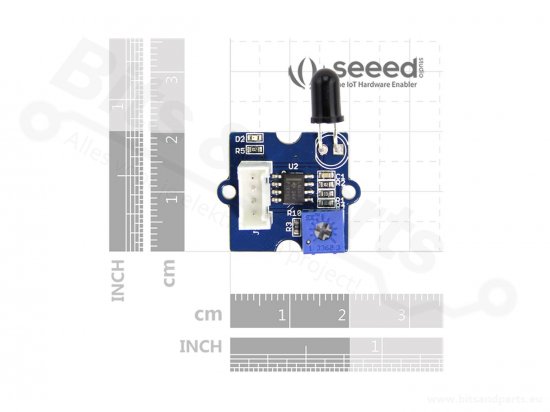

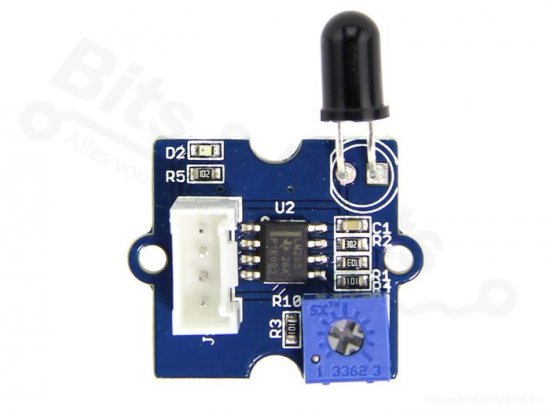

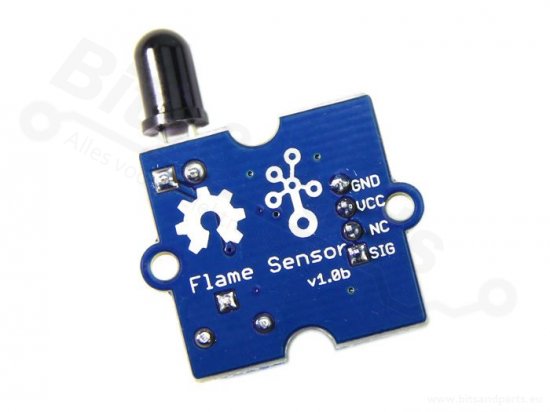

Fire sensor/ Flame sensor YG1006 on Grove board
Product information:
The Grove-Flame Sensor can be used to detect fire sources or other light sources of the wavelength in the range of 760nm - 1100 nm.
It is based on the YG1006 sensor which is a high-speed and high-sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. As a result, the module is mainly used to detect infrared light.
It outputs digital signals 0 and 1 through a Comparator output. The output value will be 0 when infrared light is detected. And the sensitivity is adjustable by the precision potentiometer.
Features:
- High-performance: detecting fires or light of the wavelength in the range of 760nm ~ 1100nm
- High-speed: detecting speed up to 15μS/cm
- High-sensitive: based on the YG1006 sensor - a high-sensitive NPN silicon phototransistor
- Adjustable sensitivity: a precision potentiometer provided

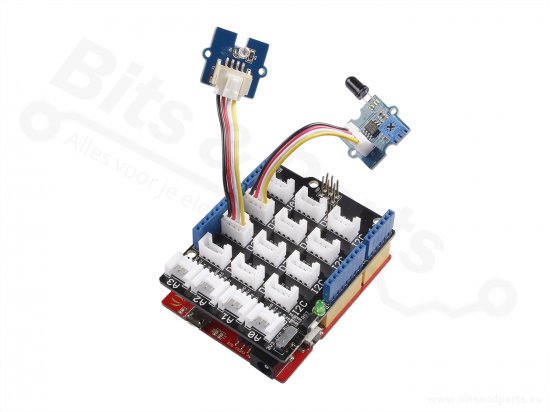

- Easy to program: Grove Interface for easy plug and play with your Arduino board instead of using jumper wires, supports both Arduino and Raspberry Pi platforms, and full guidance documents provided
- With Grove connection cable
- Seeed Grove part number: 101020049
Click to view the product's website.
>
