IC 74HC10 Triple 3-Input Positive-NAND

Product information:

The 74HC10; 74HCT10 is a triple NAND gate with 3 inputs. The inputs contain clamp diodes which allow the use of current limiting resistors to couple inputs to voltages higher than VCC.

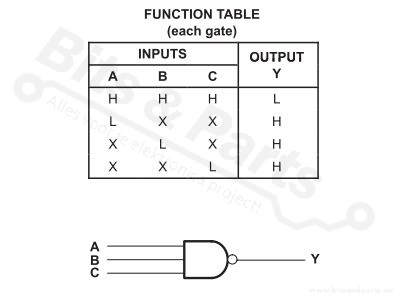

If inputs A, B, and C are all high, output Y becomes low. If any one of the inputs is low, output Y remains high.

Specifications

:
Type:SN74C10N
Housing:DIP-14

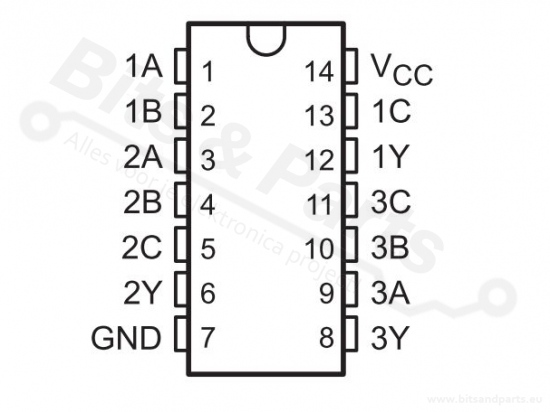

Number of pins:14

Documentation

:
icon_filetype_pdf
Datasheet SN74HC10D.pdf (English)
