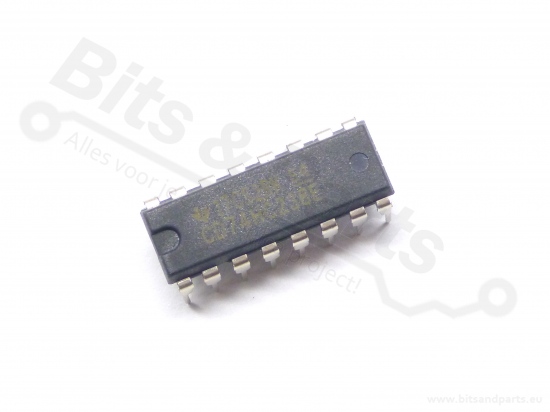

IC 74HC238 3 to 8 line decoder/demultiplexer

IC 74HC238 3 to 8 line decoder/demultiplexer

Product information:

With this 74HC238 IC you can easily increase the number of output pins of your circuit.
With 3 input pins you can control 8 output pins.

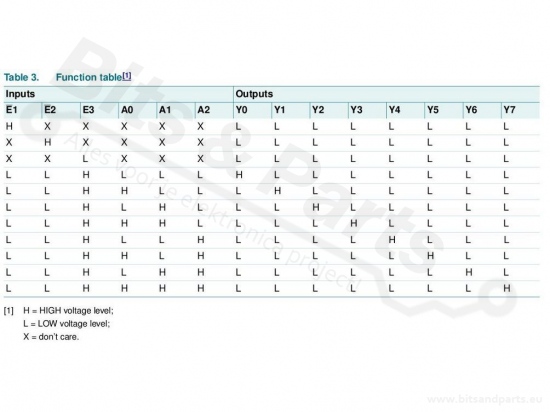

The 3 binary select inputs (A, B and C) determine which of the outputs (Y0-Y7) is made high. If enable input G1 is held low or if G2A or G2B is held high then the decoder function stops and all outputs go low.

Click to view the product's website.
