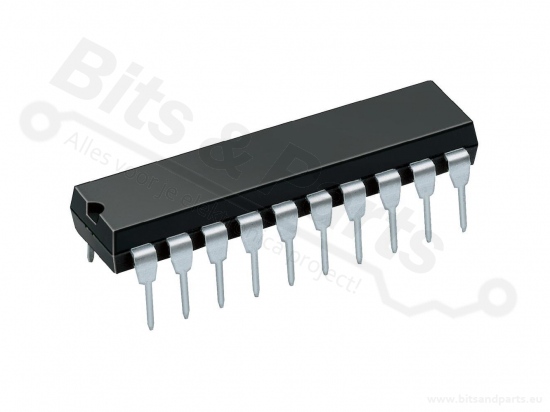

IC TPIC6B595N 8 Bit shift register

Product information:

The TPIC6B595N is an 8-output shift register.
In other words, you can use this to drive 8 outputs while only using a few pins on your Arduino.
You can even link multiple registers to get even more output pins.
See how it works on this page:
http://arduino.cc/en/Tutorial/ShiftOut

Here you can find a tutorial:
http://bildr.org/2011/02/74hc595/

Specifications

:
Type:TPIC6B595N
Housing:DIP-20
Number of pins:20
Voltage:4,5 - 5,5V

Documentation

:
icon_filetype_pdf
Datasheet tpic6b595.pdf (English)
