LED Matrix Display Module 8x8 MAX7219 Red

LED Matrix Display Module 8x8 MAX7219 Red

Product information:

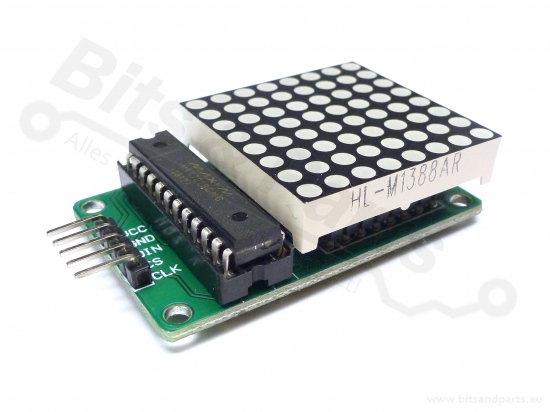

LED matrix display module with 8x8 LEDs controlled by a MAX7219.
Using 3 inputs from your Arduino or other MCU you can control all LEDs individually.

For example, use the LEDcontrol library (see documentation). See also the programming examples under documentation.

For a connection example, see the programming examples.

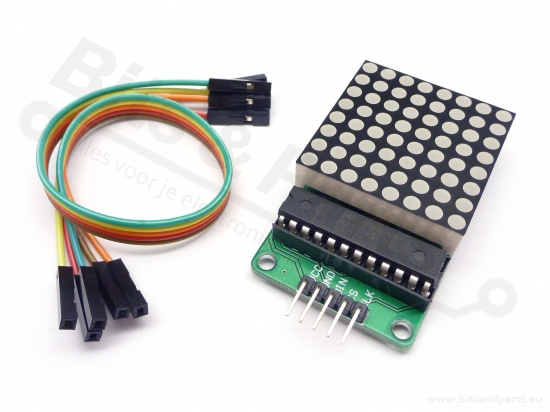

Supplied with 5 pin female/female cable.

The module operates on 5V and has a common cathode. The LED matrix is removable.

LED matrix dimensions: 32x32mm.
Total module dimensions: 50x32x12.6mm.
