Product information:

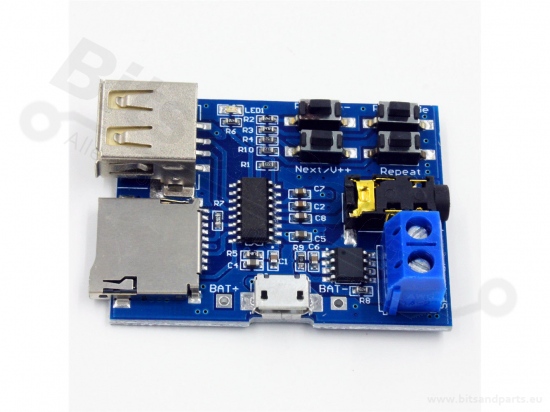

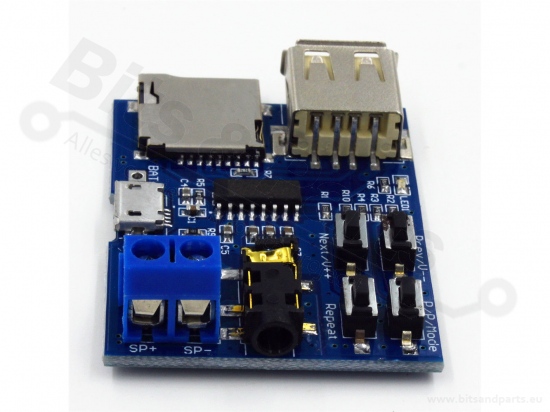

Simple, but complete MP3 player to build into a project.

The MP3 files can be played from microSD card (up to 16GB) or USB stick (up to 32GB).

As soon as the player gets power it will start playing. The red LED will start flashing to indicate that it is playing.

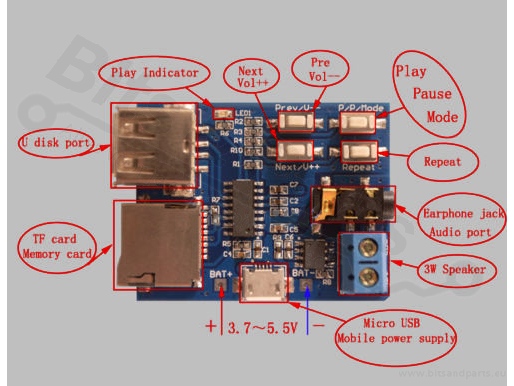

Prev / V-- button: Press to go back to the previous song, long press to turn down the volume.

Next/v++ button: Press to skip to the next song, long press to turn up the volume.

P / P / Mode button: Press for Play/Pause, long press to switch between USB stick and SD card.

Repeat button: Press to repeat single track/all tracks (no long press mode).

Recommended speaker: 4Ohm / 3W.
A speaker can be connected to the screw terminals.

Headphones or other speakers can be connected to the 3.5mm jack connection.

Power supply: 3.7~5.5V via BAT+/BAT- or via micro USB connection.

This player cannot be controlled directly via an Arduino or other MCU unless you replace the buttons.
