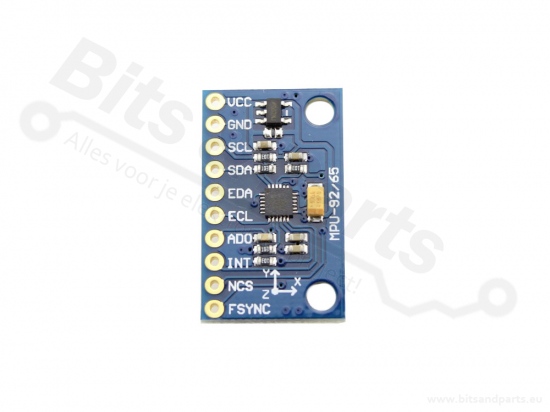

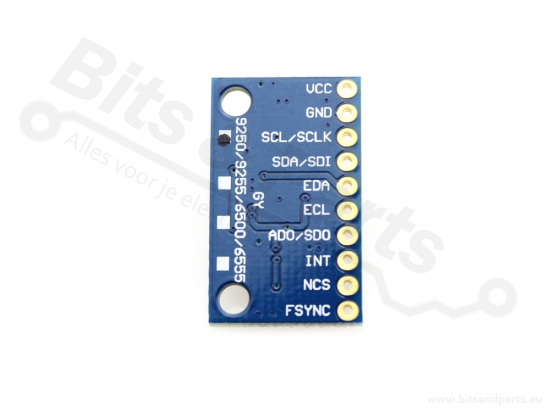

Accelerometer/gyroscope I2C - MPU-9250 (9DOF)

Accelerometer/gyroscope I2C - MPU-9250 (9DOF)

Product information:

The MPU-9250 is a 9-axis motion tracking circuit that combines a 3-axis gyroscope, a 3-axis accelerometer, a 3-axis magnetometer and a Digital Motion Processor (DMP) into a small chip.

Each channel has a 16-bit ADC (analog-digital converter) and is therefore very precise.

Features:
- 1 chip with 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer.
- MPU-9250 chip
- Power supply: 3V to 5V (by voltage regulator on the board).
- Readout via the I2C/SPI bus.
- Accelerometer range: +/-2g, +/-4g, +/-8g and +/-16 g.
- Gyroscope range: +/-250, +/-500, +/-1000, +/-2000 °/s (dps).
- Magnetometer range: +/-4800μT
