Raindrop sensor analog/digital - Crowtail - Elecrow

Raindrop sensor analog/digital - Crowtail - Elecrow

Product information:

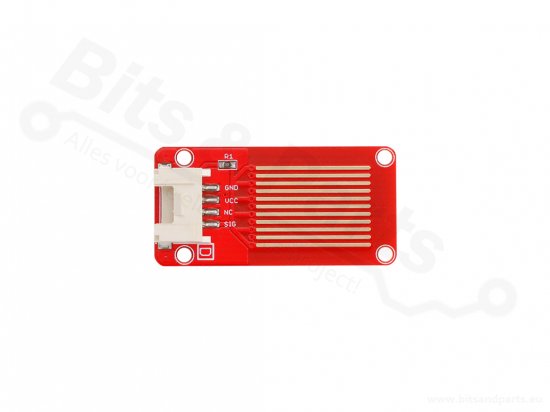

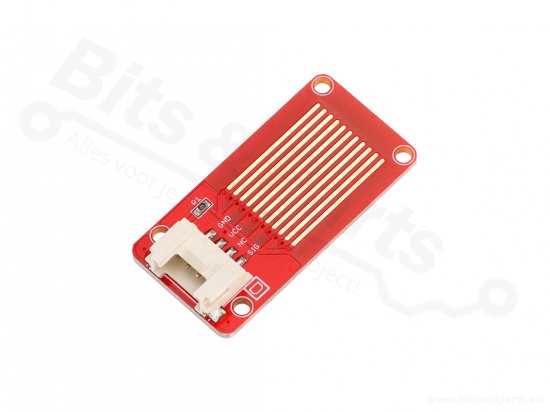

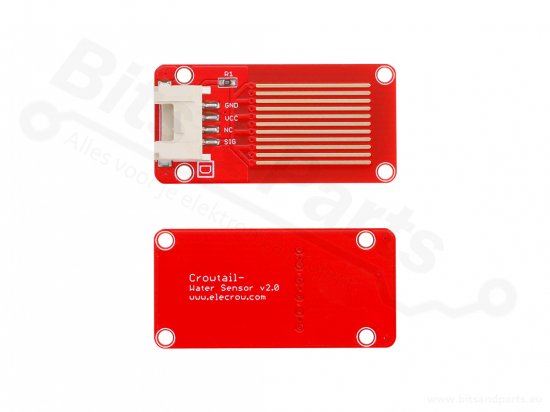

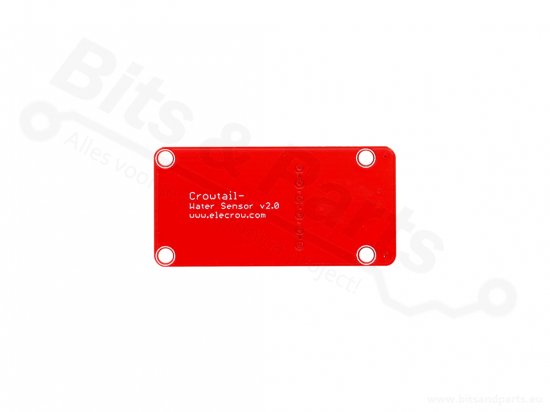

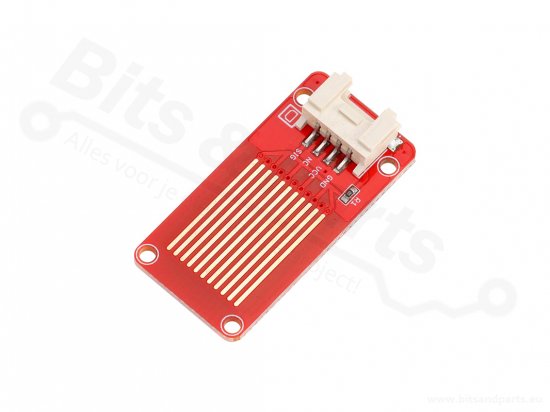

This water sensor has a specific Crowtail interface that compatible with Crowtail base board. The water sensor detects water by having a series of exposed traces connected to ground and interlaced between the grounded traces are the sensor traces. The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace. With the digital I/O pins of Crowduino , you can detect the amount of water induced contact between the grounded and sensor traces.

Features:

- Crowtail compatible interface
- Low power consumption
- High sensitivity
- Dimensions(mm):40.0(L)x20.0(W)x6.8(H)
- Applications Ideas
- Rainfall detecting
- Liquid leakage
- Tank overflow detector

Package list:

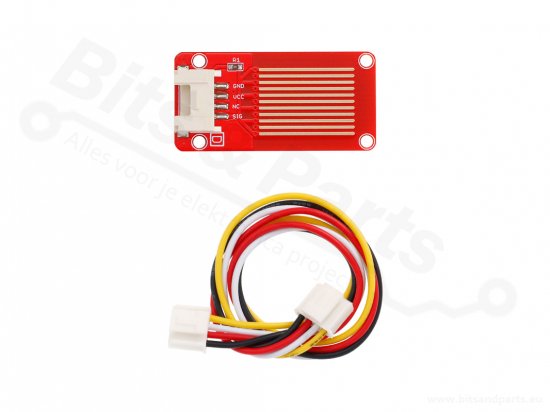

- Crowtail-water sensor x 1

Crowtail is Elecrow’s modular “plug-and-play” ecosystem that allows you to quickly connect and control components/boards with a single set of compatible hardware.
