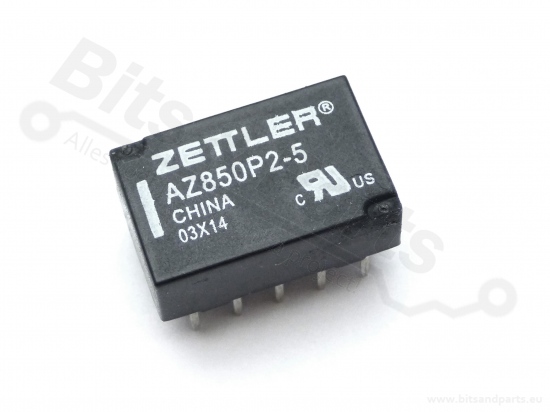

Relay bi-stable subminiature / Latching 2 coils 5V Zettler AZ850P2-5

Relay bi-stable subminiature / Latching 2 coils 5V Zettler AZ850P2-5

Product information:

DPDT; 5VDC; 0.5A/125VAC; 1A/30VDC

Relay type: electromagnetic
Contacts configuration: DPDT
Rated coil voltage: 5V DC
AC contacts rating
(at resistance load): 0.5 A / 125 VAC
DC contacts rating
(at resistance load): 1 A / 30 VDC
Contact current max.: 1A
Switched voltage: max 220V DC, max 250V AC
Relay variant: bistable, subminiature
Mounting: PCB
Coil resistance: 125 Ohm
Coil voltage min.: 3.5V DC
Coil voltage max.: 12.5V DC
Operate time: 2ms

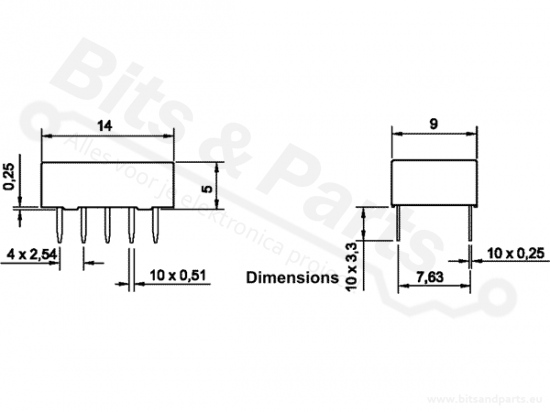

Body dimensions: 14 x 9 x 5mm
Release time: 2ms
Coil power consumption: 169mW
Mechanical durability: 100000000 cycles
Operating temperature: -55...90°C
Relay series: AZ850
Contact resistance: 70m%u03A9
Case; DIP10
Switching capacity: 30W, 50VA
Soldering temperature: 250°C

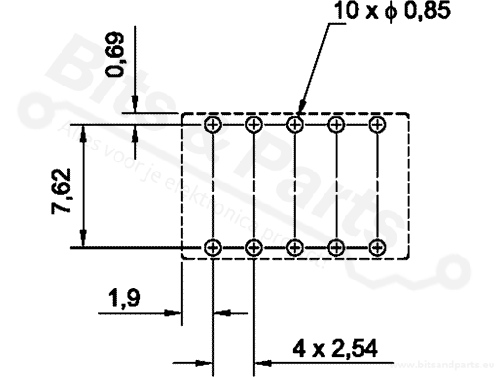

Contact pitch: 2.54mm

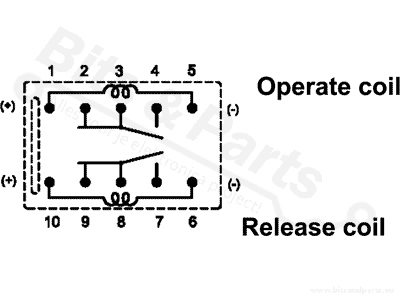

Relay features: two coils
Test voltage: 1.5kV
