Relay board 1-channel 12V bistable / toggle

Relay board 1-channel 12V bistable / toggle

Product information:

The microswitch on the board or an external switch (or microprocessor) allows you to switch the relay on and off (toggle).
If you press the microswitch, the relay will be energized. If you press it again, the relay will be released.

With onboard LED and connection for an external LED indicating the status of the relay.

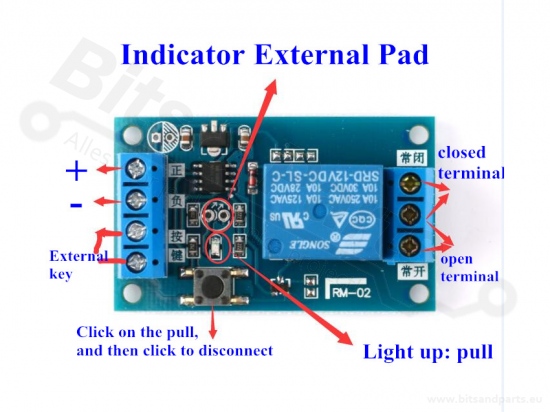

Connections: (see last image)
On +/- left you connect 12VDC. On the right you connect the device to be switched on the normally open or normally closed contacts.
The external key connector is for an external on/off switch.

Voltage Vcc: 12V
Switching of AC voltage (max. 250V) and DC voltage (max. 30V) up to 10A.

Please note! After de-energising the relay will be de-energised.
