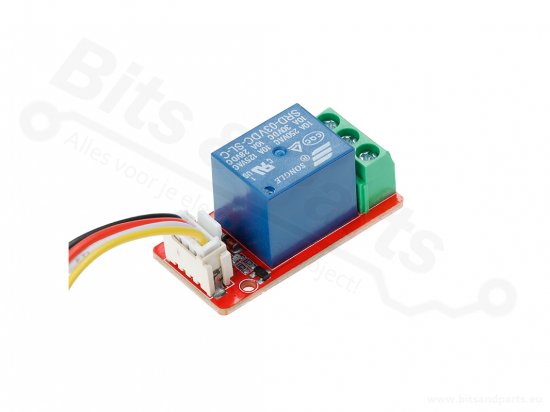

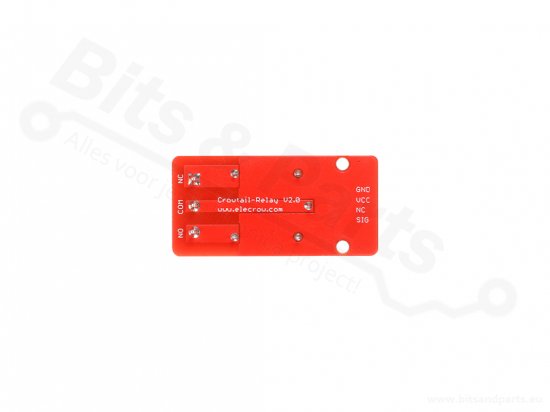

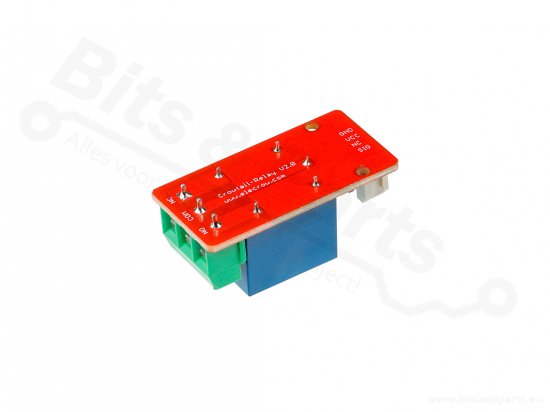

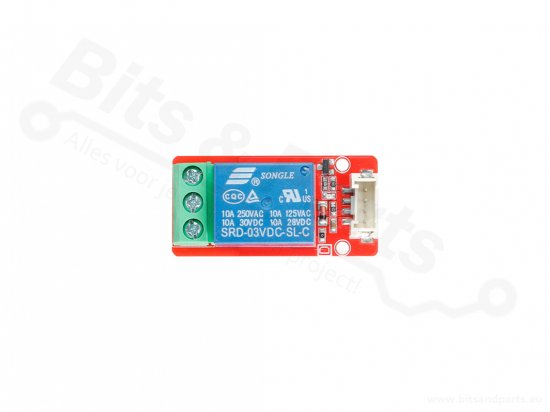

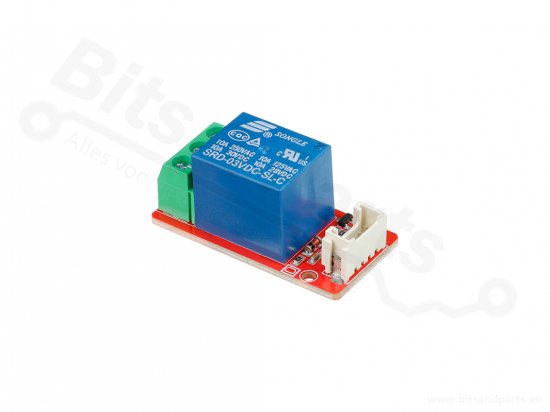

Relay board 1-channel 5V - Crowtail - Elecrow

Relay board 1-channel 5V - Crowtail - Elecrow

Product information:

The relay is the most common used module in actually application such as home automation, and sometimes you need to control large current such as the air conditioning/water heater. That is what this Large Current Relay Module can be help.
This Large Current Relay Module is a high quality Single Pole Single Throw Relay(SPST). When the relay not triggered, the 2 outputs is disconnected; when the relay triggered(Logic Low), the 2 outputs connected, the max current can be up to 30A@240VAC or 30A@30VDC, which would be enough for most of the home appliances.

Specifications:

- Control Voltage: 5V
- Nominal Current: 185mA

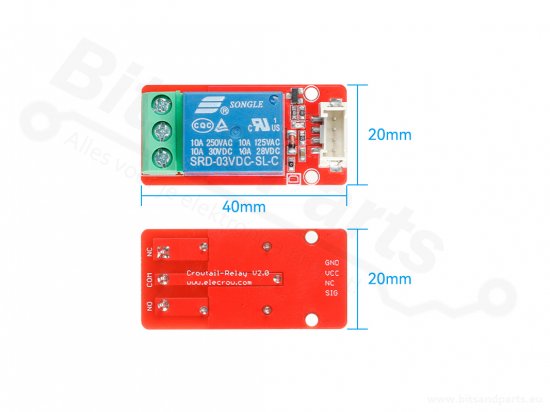

- Dimensions(mm):40.0(L)x20.0(W)x17.2(H)

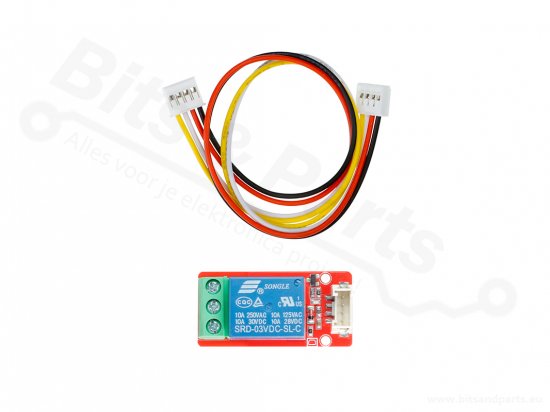

Part List:

- 1 X Crowtail- Relay
- 1 X Crowtail 4 Pin Cable

Crowtail is Elecrow’s modular “plug-and-play” ecosystem that allows you to quickly connect and control components/boards with a single set of compatible hardware.
