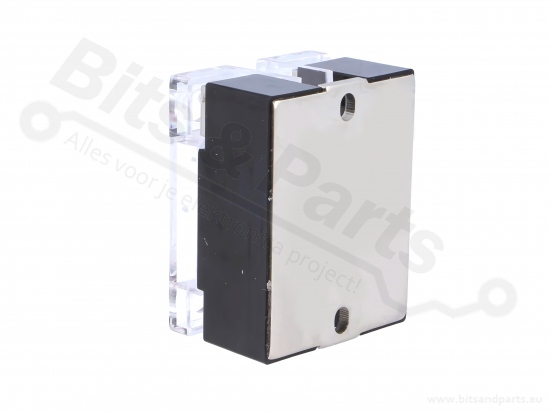

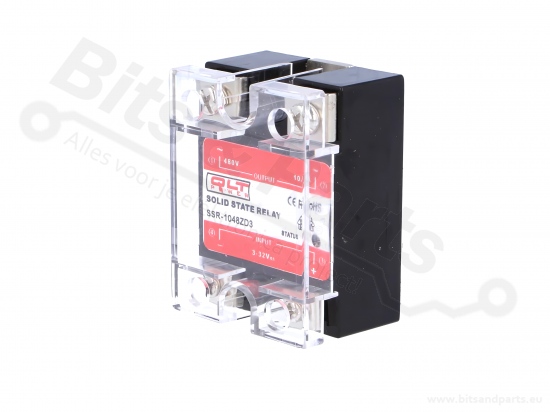

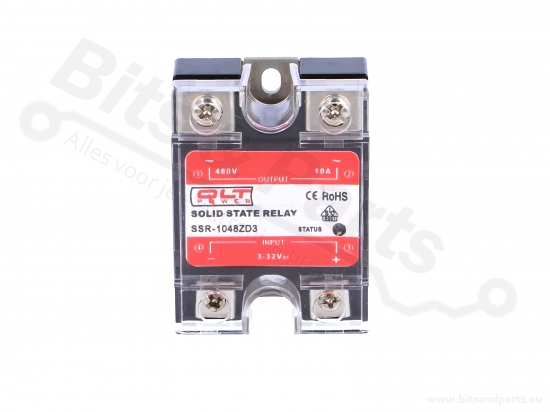

Relay - Solid state relay 3-32V / 10A / 44-440VAC - QLT POWER SSR-1048ZD3
Product information:
A solid state relay (SSR) allows a high-amperage AC load to be switched with a low-voltage DC drive circuit.
Solid state relays have several advantages over mechanical relays. One of these advantages is the ability to switch at a much longer voltage and lower current than most mechanical relays.
In addition, an SSR has no moving parts and can shift much faster and longer without wearing out.

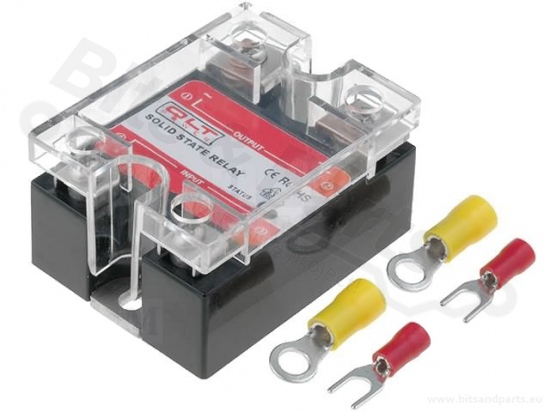

This SSR can switch current up to 10A with an input of 3 to 32V DC. Each relay is equipped with 4 screw terminals (for use of ring or fork connectors).
Relay type: semiconductor
Control voltage: 3...32V DC
Max. rated current: 10A
Switching voltage: 44...440V AC
Relay version: single phase
Relay series: SSR
Switching method: switching at zero voltage
Maximum load current when using suitable cooling.
