Rotary Encoder/Pulse Generator - EC11 on breakout with knob - 20mm

Rotary Encoder/Pulse Generator - EC11 on breakout with knob - 20mm

Product information:

This rotary encoder switch gives a pulse at each step on the output to the microprocessor (e.g. Arduino). You can see which way the switch is turned and if it is in the zero position.
Unlike a potentiometer, the rotary encoder has no limit on the number of times it can rotate.
You can also press the button so that you can turn it into a menu button
to make.

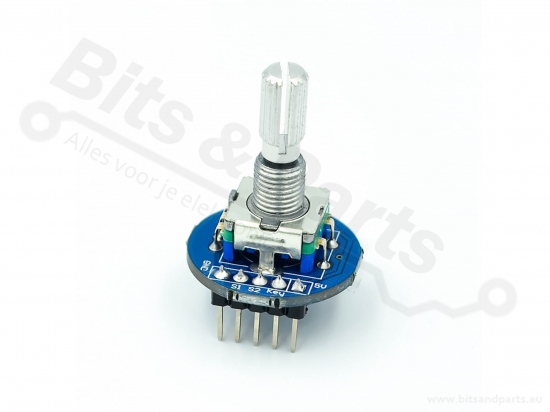

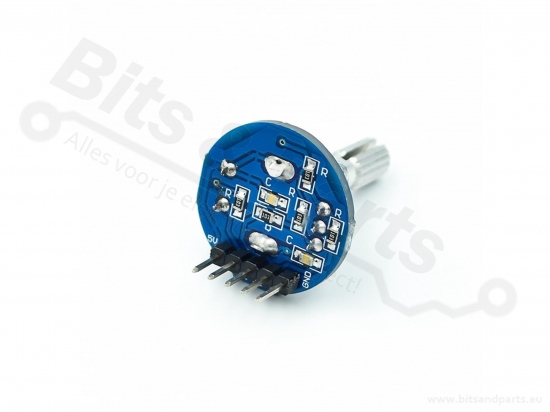

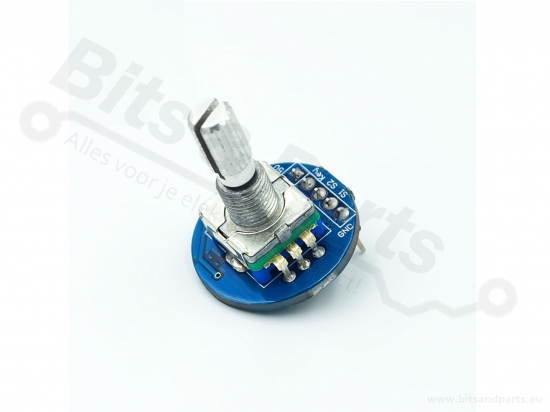

This rotary encoder is already on a printed circuit board with header pins so you can easily use it on a breadboard, for example.

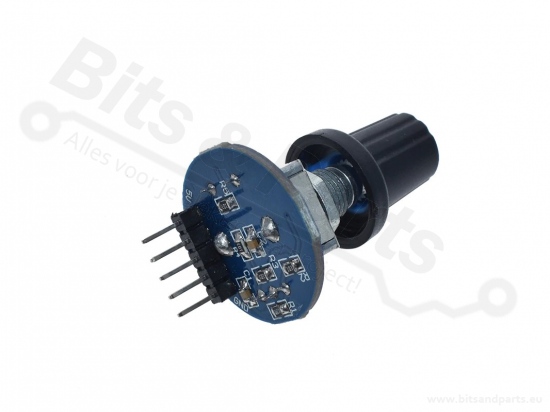

A black button with a blue stripe is also included.

Length axle: 20mm
Length of moving part of shaft: 13mm
Diameter axle: 6mm (See https://www.bitsandparts.nl/Knoppen/c1-17-63 )

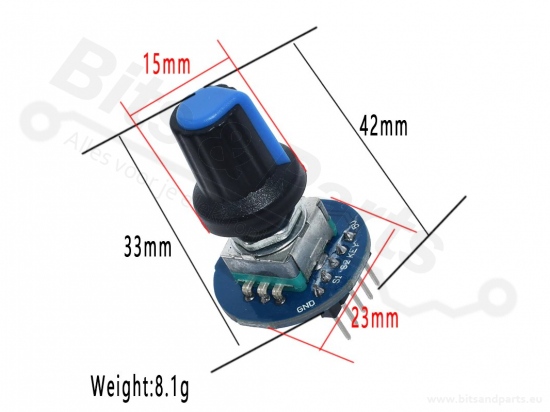

Dimensions: 30mm x 15mm x 12mm (incl. pins).
Voltage: 5V

For connecting to an Arduino see: https://github.com/aleh/AAL-EC11
