Seeed XIAO Microcontroller RP2040

Seeed XIAO Microcontroller RP2040

Product information:

Seeed Studio XIAO RP2040 is compatible with the Raspberry Pi RP2040 ecosystem as they share the same RP2040 chip. It supports multiple languages including C / MicroPython / CircuitPython. This will be a great tool for you to get started with MicroPython.

Specifications:

- CPU: Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
- Storage: 264KB of SRAM, and 2MB of onboard Flash memory

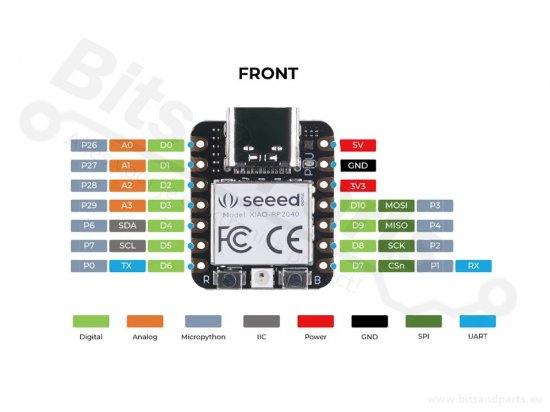

- I/O PINs: 11 digital pins, 4 analog pins, 11 PWM Pins
- Interface: 1 I2C interface, 1 UART interface, 1 SPI interface, 1 SWD Bonding pad interface
- Power supply & Downloading interface: USB Type-C interface

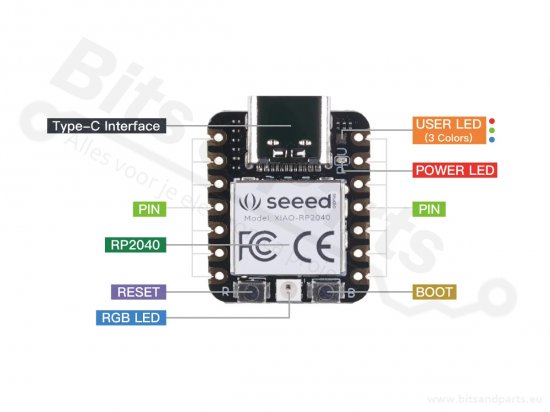

- LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading, 1 RGB LED
- Button: 1 RESET button, 1 BOOT button
- Power Pads: For the battery power supply
- Software compatibility: Support Micropython / Arduino / CircuitPython
- Cover: Projection cover for protecting the circuit

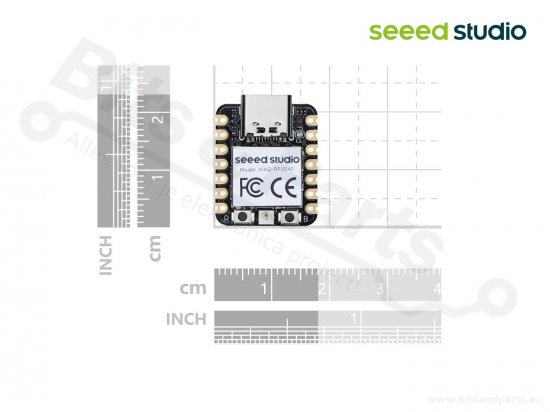

- Dimensions: 21mm x 17,8mm

Features:

- High Performance: Powered by Raspberry Pi 2040 chip, dual-core operating up to 133 MHz, equipped 264KB of SRAM, and 2MB of onboard flash memory
- Ultra-small Design: 21 x 17.8mm, Seeed Studio XIAO series classic form-factor, suitable for wearable devices
- Multiple Development Interfaces: 2x buttons, 11x digital / 4x analog pins, 1x I2C interface, 1x UART port, 1x SPI port, and 1x SWD Bonding pad interface
- Multiple Develop Platform: Support Arduino / Micropython / CircuitPython development, friendly for beginners, satisfied for electronics enthusiasts
Perfect for Production: Breadboard-friendly & SMD design, no components on the back

Tutorial: https://tutoduino.fr/en/tutorials/programing-in-rust-the-xiao-rp2040-board/
