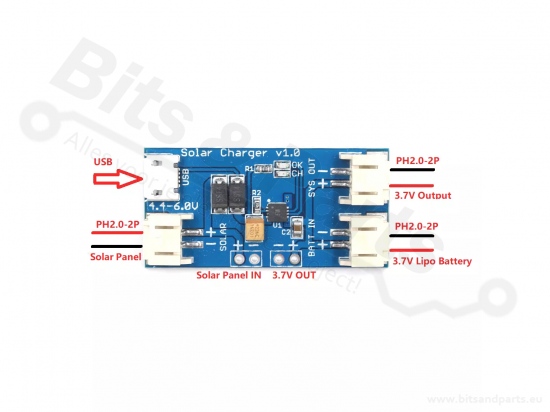

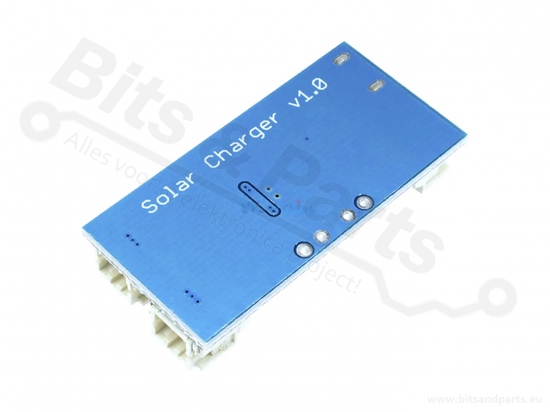

Solar LiPo Charger CN3065
Product information:
This is a mini Solar Lipo charger based on the CN3065 - a single lithium battery charge management chip.
This solar charger gives you the opportunity to get the most possible current from your solar panel or other photovoltaic device and put it into a rechargeable LiPo battery.
Installation is simple: simply connect your solar panel to one side of the solar charger and your battery to the other and start charging!
The output of the solar charger is designed to charge a single polymer lithium ion cell. The load must be connected in parallel with the battery.
By default, the module is set to a maximum charging current of 500mA with a maximum recommended input power of 6V (minimum 4.4V). It is recommended not to charge batteries with a higher capacity than their capacity.
Please note! The module does not have its own battery protection.
- Solar panel input: 4.4-6V
- Maximum charging current: 500mA
- Interface: 2-pin JST connectors (or PH2.0)
- Short circuit protection
- Continuous charging current up to 500mA
- Battery status indication (red: charging, green: charged)

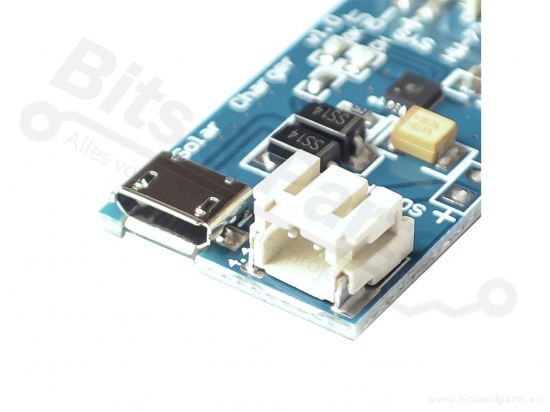

- Micro USB Connector
- Dimensions: 20mm x 40mm
>
