Product information:

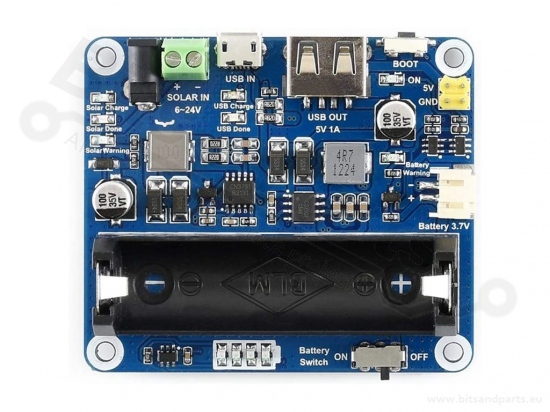

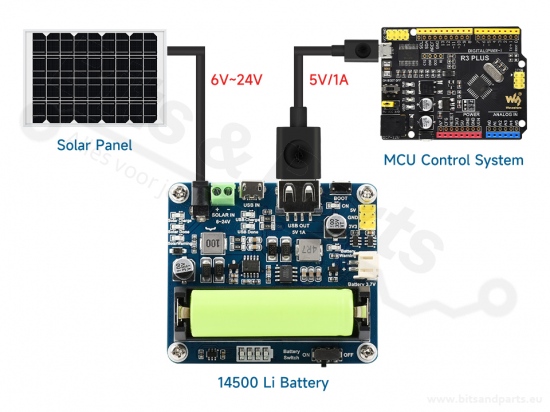

This solar power management module is designed for 6V~24V solar panel. It can charge 3.7V rechargeable Li-battery via solar panel or USB port, and provides 5V/1A or 3.3V/1A regulated output. You can easily connect MCU such as Arduino or ESP to it.

The module has the MPPT (Maximum Power Point Tracking) function and multiple protection circuits, which can keep it working with high efficiency, stability and safety. It is suitable for solar IoT, energy-saving IoT projects and other environmental protection projects.

- The MPPT function ensures that the efficiency of the solar panel is maximized
- Supports battery charging via solar panel/USB port
- For 6V~24V solar panel, DC-002 jack input or screw terminal input
- Onboard MPPT SET switch, select the level connected to input level to improve charging efficiency
- Two output interfaces: USB port for 5V output, pin header for 3.3V or 5V output
- Onboard high-capacity aluminum electrolytic capacitor and SMD ceramic capacitor, reducing ripple and stable performance
- 14500 battery holder and PH2.0 battery connector, for connecting multiple types of 3.7V rechargeable Li-batteries

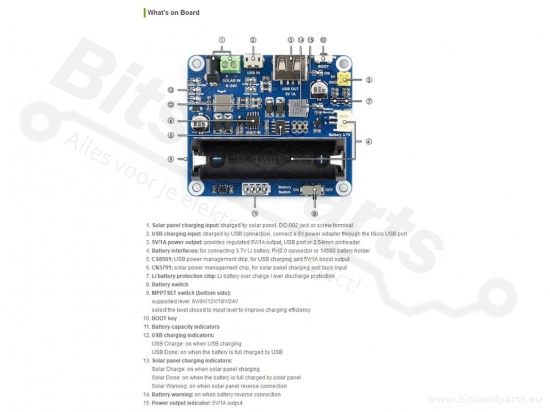

- Various LED indicators, for monitoring the status of the solar panel and battery
- Multi-protection circuits: overcharge/overdischarge/reverse protection/overheat/overcurrent, stable and safe to use

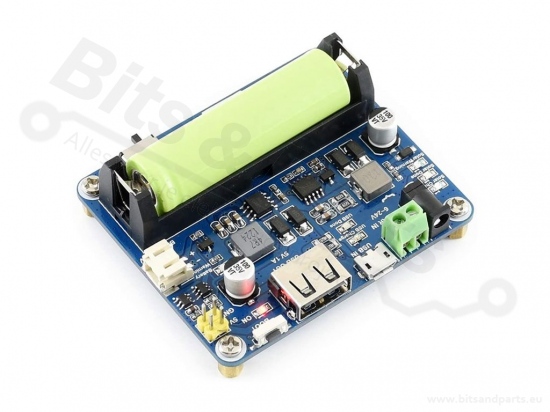

Comes with 850mAh 14500 battery.
