STM32 ARM development board STM32F103C6T6
Product information:
This powerful and compact STM32 development board is perfect for anyone wanting to get started with STM32 microcontrollers. Featuring an STM32G030C8T6 chip (Cortex-M0+ core), a 64 MHz clock speed, 32 KB of flash, and 10 KB of RAM, this board is ideal for entry-level projects, embedded applications, or as a learning tool.

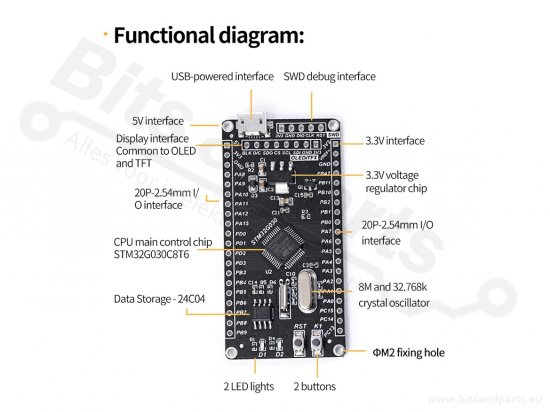

Key Features:
- Black PCB design – sleek and professional

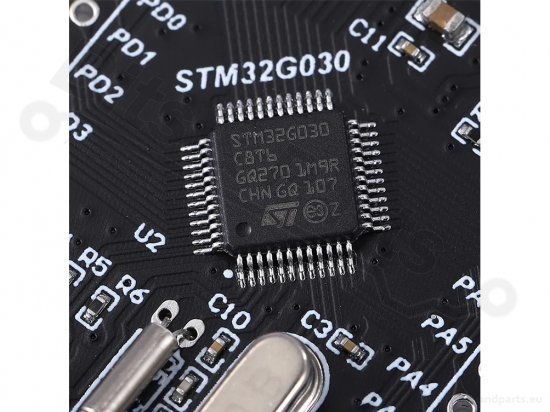

- STM32G030C8T6 MCU (64MHz, 32K Flash, 10K RAM)
- Onboard 8MHz crystal + 32.768kHz RTC crystal
- 24C04 EEPROM for data storage
- USB connection for power (not for programming)
- SWD debugging interface – compatible with popular emulators
- LED indicator, reset button & user button
- All GPIOs are externally connected, headers are free to solder
- Supports OLED/TFT-LCD displays (plug & play)

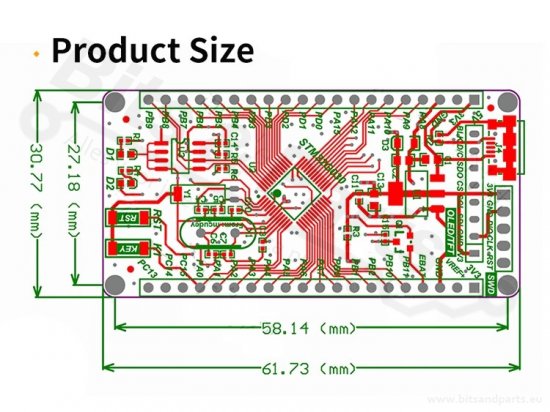

Dimensions: 59mm x 31mm
Perfect for: starters, hobbyists, embedded developers, and STM32 learning paths.
Please note: Programming is done via the SWD interface (e.g. use ST-Link V2 or compatible debugger).
Supplied with loose header pins and Micro-USB cable.
>
