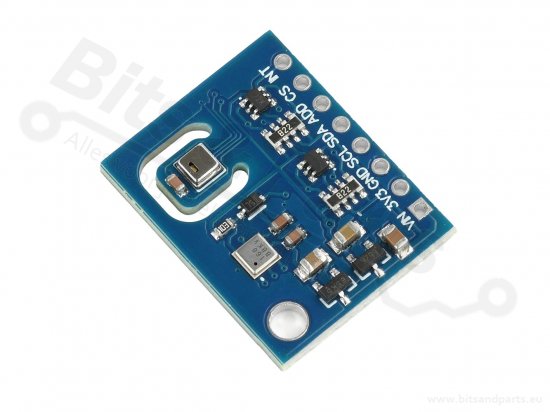

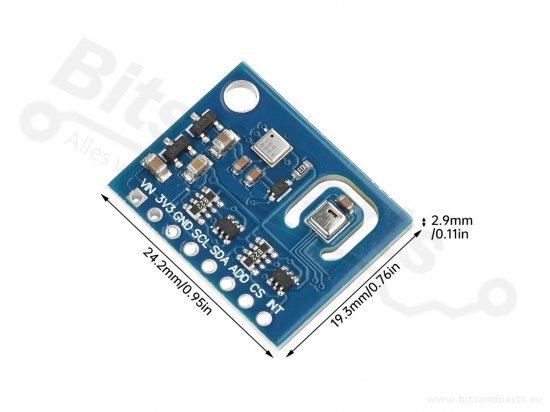

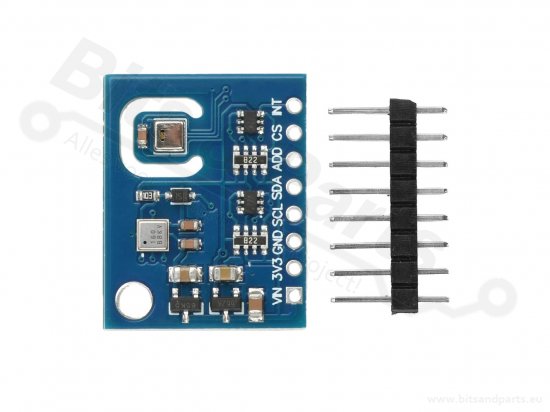

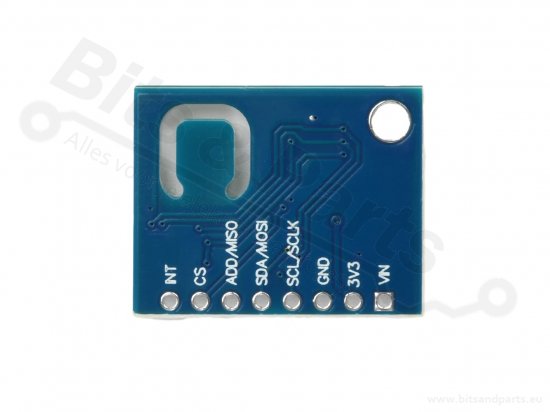

Temperature and humidity sensor AHT21 + Air quality sensor ENS160

Temperature and humidity sensor AHT21 + Air quality sensor ENS160

Product information:

The ENS160 is a digital multi-gas sensor designed for indoor air quality measurement and detects a wide range of gases such as toluene, hydrogen, ethanol, NO₂ and ozone. Ideal for applications in smart home, building automation, air purification and consumer electronics.

The AHT21 sensor is a new generation temperature and humidity sensor in a compact 3x3mm SMD package. With calibrated digital output, improved reliability and high accuracy, this sensor is suitable for HVAC, weather stations, medical applications, data logging, and more.

Features:

• ENS160 Multi-Gas Detection: Accurate measurement of multiple gases and VOCs including toluene, hydrogen, etc.
• AHT21 temperature and humidity sensor: temperature accuracy of ±0.3°C, humidity accuracy of ±2% RH
• Dual sensor integration: air quality and temperature/humidity monitoring in one module
• Wide working range: temperature -40~+85℃, humidity 5~95%RH
• Fast heat-up: ENS160 takes less than 1 minute to reach optimum performance

Specifications

ENS160 Air Quality Sensor

• Detection of: toluene, hydrogen, ethanol, NO₂, ozone and other VOCs
• Detection range: 0 ~ 65535 ppb (4 MOX sensor elements)
• Outputs: TVOC, eCO₂, AQI
• Interfaces: I²C and SPI
• Voltage: VDD 1.71~1.98V / vDDIO 1.71~3.6V
• Temperature: -40 ~ +85°C
• Humidity: 5~95%RH
• Warm-up time: <1 minute (start-up time: <1 hour)

AHT21 Temperature and Humidity Sensor

• Supply voltage: 2.0 ~ 5.5 V DC
• Temperature range: -40 ~ +120°C
• Humidity range: 0~100%RH
• Temperature accuracy: ±0.3°C
• Humidity accuracy: ±2% RH (at 25°C)
• Temperature resolution: 0.01°C
• Humidity resolution: 0.024% RH
• Output signal: I²C
