Transistor BC517 NPN Darlington 1.2A / 30V

Transistor BC517 NPN Darlington 1.2A / 30V

Product information:

The BC517 transistor is a NPN darlington transistor. A darlington transistor is a pair of combined two BJT transistors connected together in a wiring called darlington pair in a single package to achieve high gain and to switch higher current with small base current.

The BC517 transistor also has a very high DC current gain (30000) compared to other normal NPN transistors, which makes it can be used as a switch where a very small or low amount of current base current is available and where other BJT NPN transistors will not saturate at that small current. It can drive 1.2A at its output, which is a good feature for driving various loads with a very small current. It will also perform well in audio amplification stages in audio circuits.

Maximum current: 1.2A
Maximum power: 625mW
Maximum voltage (collector-emitter): 30V

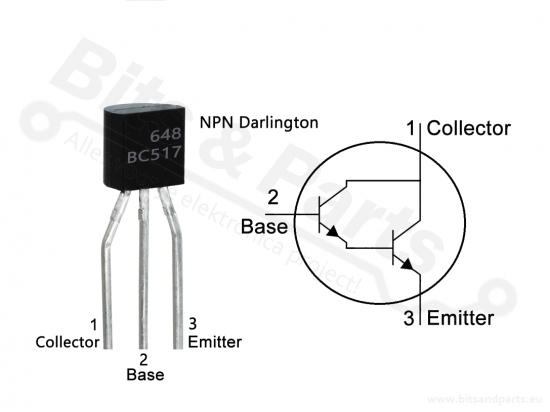

Pinout:

What does an NPN transistor do?

An NPN transistor is a type of bipolar transistor that uses current or voltage to control the flow of current through a circuit. The key feature of an NPN transistor is that current flows from the collector to the emitter when a small current is applied to the base.

What an NPN transistor does:

Switching: When a positive voltage is applied to the base relative to the emitter (more positive than the emitter), the transistor turns 'on', allowing current to flow from the collector to the emitter. This is used in circuits to switch power.

Amplification: A small input current (from the base to the emitter) causes a much larger current to flow through the collector. This makes the NPN transistor useful as an amplifier for electrical signals.

In an NPN transistor, the collector is the positive side, the emitter is the negative side, and the base is the switch that enables current flow between the collector and emitter.

In summary: An NPN transistor allows current to flow from the collector to the emitter when a positive voltage is applied to the base.
