Ultimate Zero - RP2040 - ZERO - USB-C

Ultimate Zero - RP2040 - ZERO - USB-C

Product information:

The RP2040 is a powerful and versatile microcontroller designed for Raspberry Pi, ideal for embedded projects, prototyping, and educational purposes. This compact module features a powerful dual-core ARM Cortex-M0+ processor and offers excellent flexibility for both hobbyists and professionals.

The realistic "stamp hole" design makes the module easy to solder onto a custom PCB, while the extensive I/O capabilities (including PWM, SPI, UART and ADC) make the RP2040 suitable for a wide range of applications – from home automation to robotics.

Key Features:

- Dual core ARM Cortex-M0+ @ 133MHz
- 264KB SRAM and 2MB Flash memory
- USB-C connection
- USB 1.1 host and device support

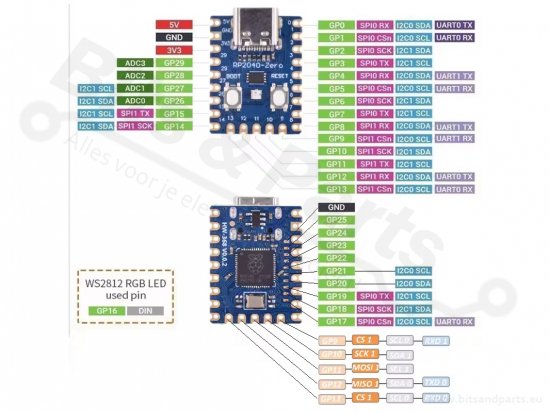

- 29 GPIO pins (20 of which are available via headers)
- 2× SPI, 2× I²C, 2× UART, 4× 12-bit ADC, 16× PWM
- Sleep and hibernation modes for low power consumption
- Internal temperature sensor and clock/timer
- PI/O state machines for customized peripheral capabilities

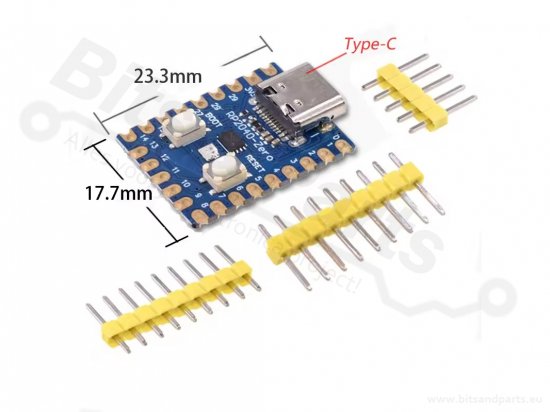

Dimensions:
- 25x18mm

Supplied with loose header pins.
