Motor driver module L9110S Dual H-bridge

HomeMotors, Servo's & DriversDrivers & Motorshields
✕
Motor driver module L9110S Dual H-bridgeMotor driver module L9110S Dual H-bridgeMotor driver module L9110S Dual H-bridgeMotor driver module L9110S Dual H-bridgeMotor driver module L9110S Dual H-bridgeMotor driver module L9110S Dual H-bridge
Motor driver module L9110S Dual H-bridge
Motor driver module L9110S Dual H-bridge
Motor driver module L9110S Dual H-bridge
Motor driver module L9110S Dual H-bridge
Motor driver module L9110S Dual H-bridge
Motor driver module L9110S Dual H-bridge
Price:
3,95
incl. tax, excl. shipping
Number:
In stock Delivery directly from stock
Low cost and fast shipping
Shipping costs for small items 2,95 €.
Above 30,00 € Free.
Secure payment
Customers value Bits & Parts with 9,2/10 Link naar Kiyoh

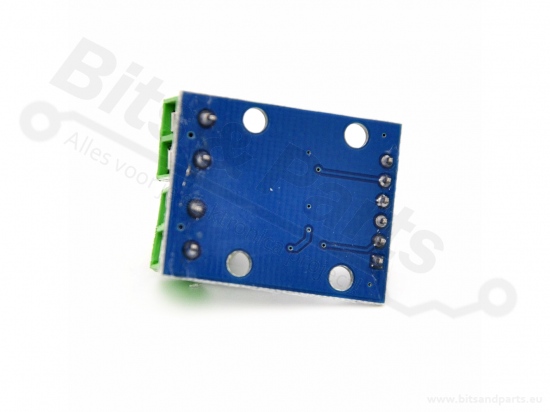

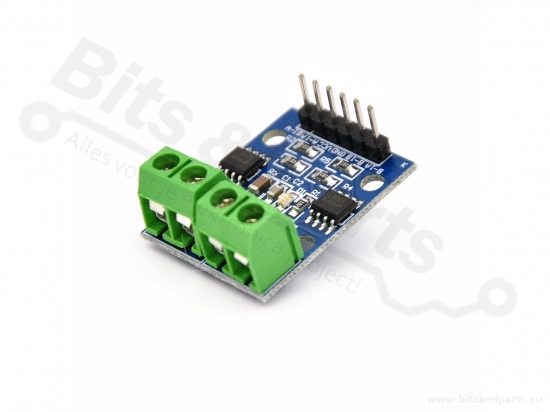

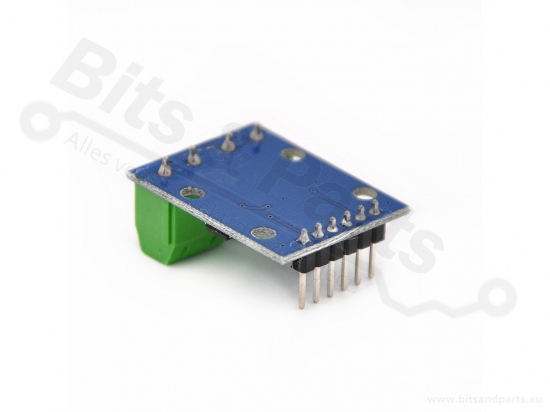

Motor driver module L9110S Dual H-bridge

Product information:

For controlling 2 DC motors up to 12V / 800mA.
Using PWM signals you can control the speed and direction of the motors.

Voltage: 2.5V - 12V
Dimensions: 28mm x 21mm
Maximum current per motor/channel: 0.8A

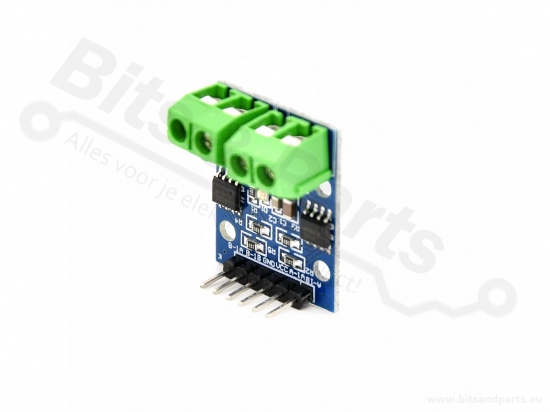

Connections / pinout:
- GND = power ground (recommended ~5V-12V)
- VCC = power supply plus
- A-1A = direction motor A (HIGH/LOW signal)
- A-1B = speed of motor A (PWM signal 0-255)
- B-1A = direction motor B (HIGH/LOW signal)
- B-1B = speed of motor B (PWM signal 0-255)

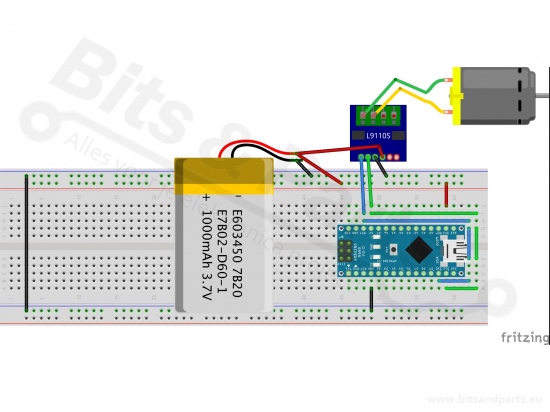

See the programming example for the possibilities.

Documentation

:
icon_filetype_ino
Programming example (English):
L9110S_motor_control.ino
icon_filetype_pdf
Datasheet L9110S.pdf (English)
