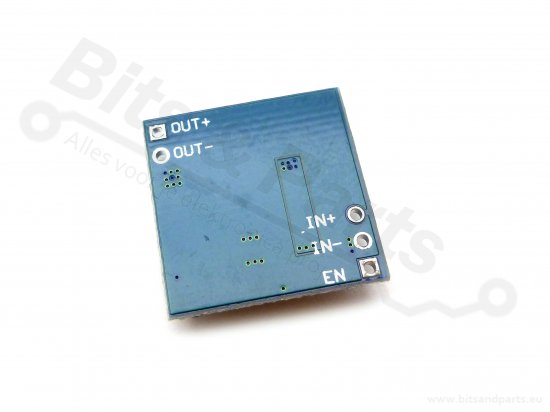

Buck converter Step Down DC-DC mini Uin:4.75-24V Uout:0.92V-15V 2.0A

Buck converter Step Down DC-DC mini Uin:4.75-24V Uout:0.92V-15V 2.0A

Product information:

Power supply module for energy-efficient reduction of a supply voltage.
The input voltage may be between 4.75 and 24 Volts.
The output voltage can be adjusted from 0.92 to 15 Volts using the adjustable resistor.

Input voltage: 4.75V-24V
Output voltage (adjustable): 0.92V-15V

Output current: 2.0A max.
Conversion efficiency: 95% (max.)
Output ripple: 30mV (maximum)
Load regulation: +/-0.5%
Voltage regulation: +/-2.5%
Switching frequency: 1.2MHz

Working temperature: -40C to +85C
Dimensions: 2.0 x 2.0 x 0.5cm
