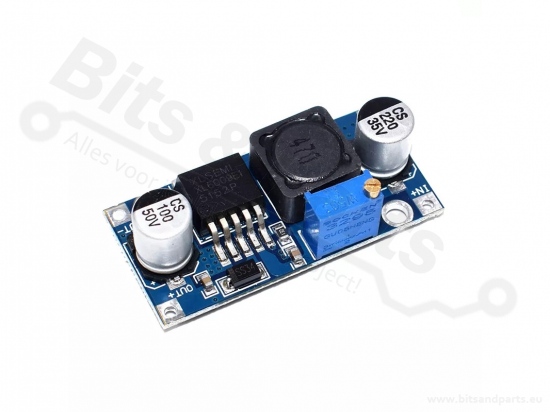

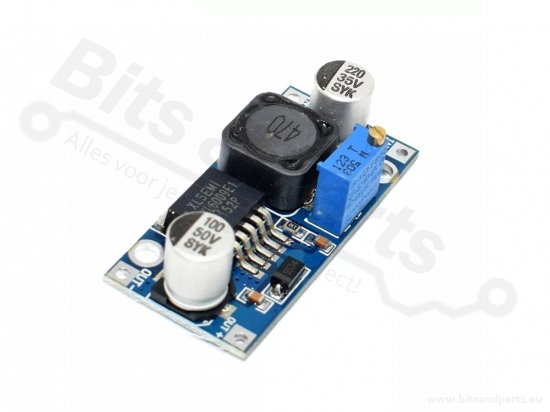

Buck converter Step Up/Down DC-DC Uin:3.8-32V Uout:1.25V-35V 3A XL6009

Buck converter Step Up/Down DC-DC Uin:3.8-32V Uout:1.25V-35V 3A XL6009

Product information:

Power supply module for energy-efficiently reducing and increasing a supply voltage.
The input voltage may be between 3.8 and 32 Volts.
The output voltage can be set to 1.25 to 35 Volts using the adjustable resistor.

Input voltage: 3.8-32V
Output voltage (adjustable): 1.25-35V

Output current: 3A
Conversion efficiency: 94% (max.)
Output ripple: 50mV (maximum)
Load regulation: ±0.5%
Voltage regulation: ±0.5%
Switching frequency: 400kHz

Working temperature: -40C to +85C
Dimensions: 4.8 x 2.5 x 1.4 cm

For loads of more than 10W, a heat sink on the voltage regulator is recommended.

This buck converter is based on the XL6009 voltage regulator.
