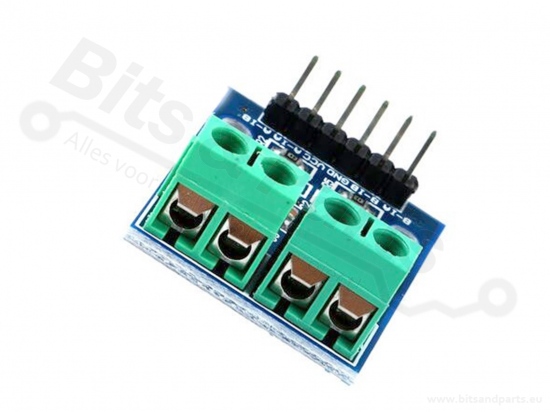

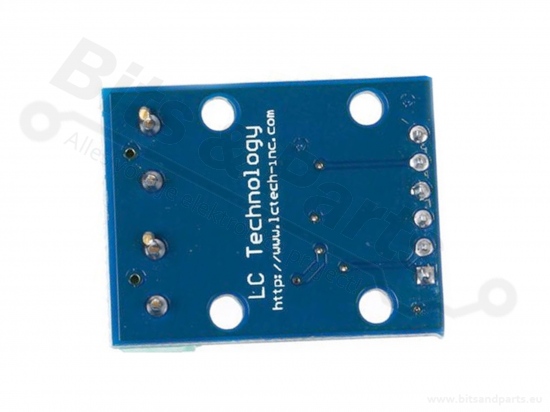

Motor driver module HG7881CP Dual H-Bridge

Product information:

Motor driver with HG7881 motor control chip. Suitable for controlling 2 DC motors or 1 4-phase stepper motor up to 12V/ 0.8A.

Voltage: 2.5V - 12V
Dimensions: 29.2mm x 23mm
Maximum current per motor/channel: 0.8A

Connections / pinout:
- GND = power ground (recommended ~5V-12V)
- VCC = power supply plus
- A-1A = direction motor A (HIGH/LOW signal)
- A-1B = speed of motor A (PWM signal 0-255)
- B-1A = direction motor B (HIGH/LOW signal)
- B-1B = speed of motor B (PWM signal 0-255)

See the link below for connecting in combination with an Arduino.
