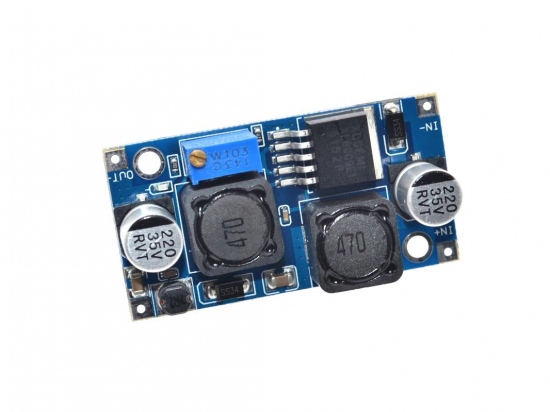

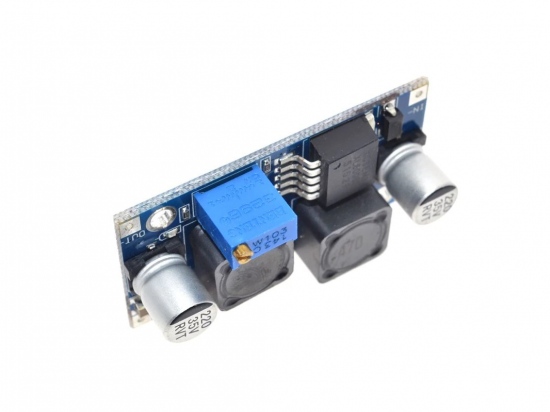

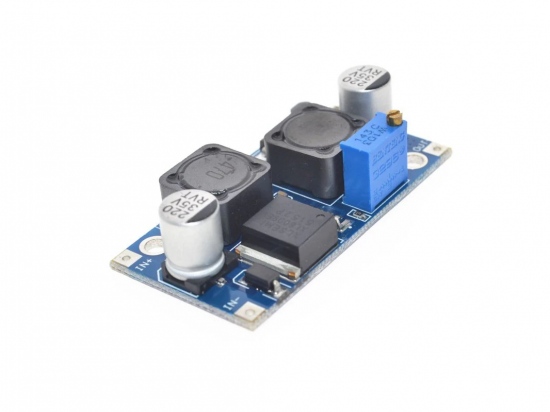

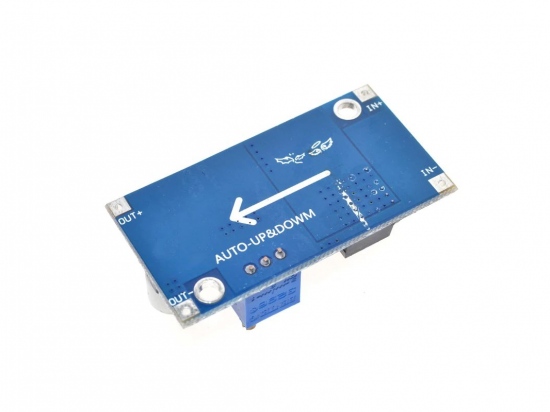

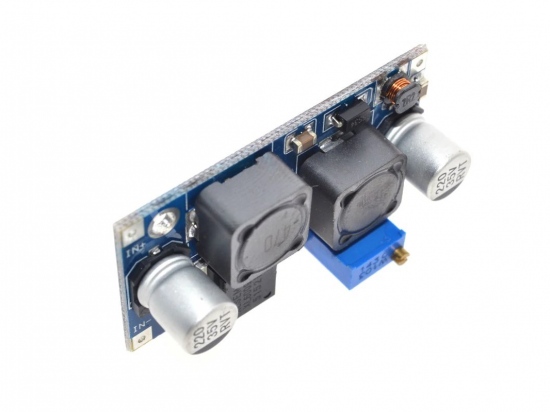

Buck converter Step Up/Down DC-DC Uin:5V-32V Uout:1.25-35V 4.0A XL6009

Buck converter Step Up/Down DC-DC Uin:5V-32V Uout:1.25-35V 4.0A XL6009

Product information:

Power supply module for energy-efficient reduction and increase of a supply voltage.
The input voltage may be between 5 and 32 Volts.
The output voltage can be set to 1.25 to 35 Volts using the adjustable resistor.

Input voltage: 5-32V
Output voltage (adjustable): 1.25-35V

Output current: 3A (max. 4A, with extra cooling)
Conversion efficiency: 94% (max.)
Output ripple: 50mV (maximum)
Load regulation: ±0.5%
Voltage regulation: ±0.5%
Switching frequency: 150kHz

Working temperature: -40C to +85C
Dimensions: 4.8 x 2.5 x 1.4cm

For loads greater than 10W, a heatsink on the voltage regulator is recommended.

This buck converter is based on the XL6009 voltage regulator.
