Display LCD HD44780 - 20x4 white on blue

Product information:

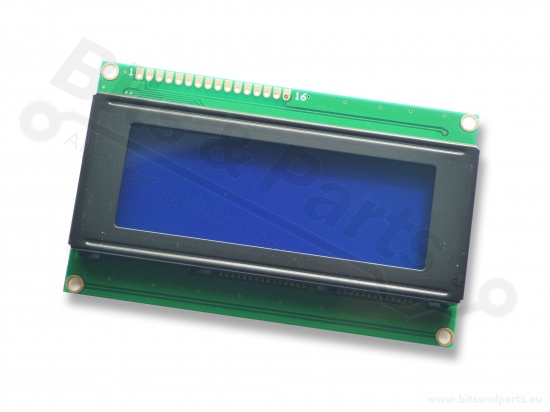

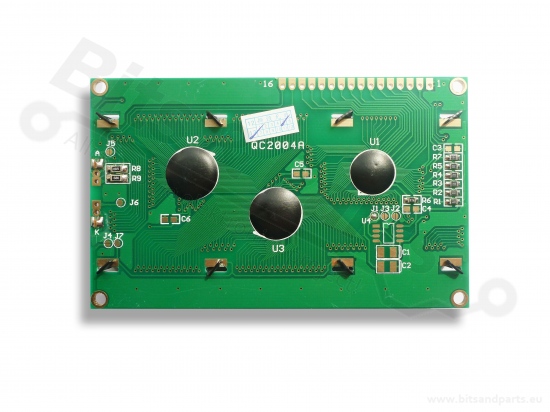

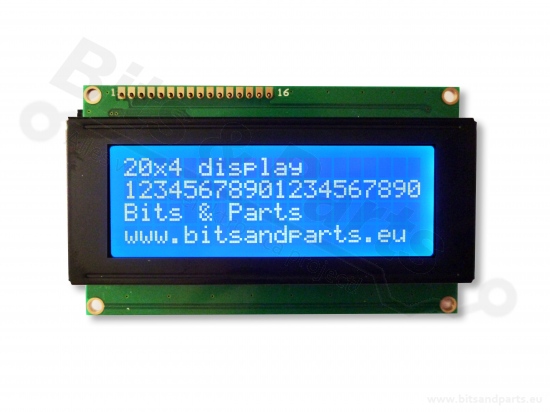

HD44780 LCD display with 4 lines and 20 characters per line.

Background color: blue illuminated.
Color letters: white.

The contrast of the display can be adjusted using the separately available I2C interface or with an adjustable resistor (see diagram).

High contrast and wide viewing angle.
Dimensions: 98mm x 60mm x 15mm.
Visible display: 75mm x 21mm
Supply voltage: 5V

With the separately available I2C interface for 16x2 / 20x4 LCD displays you only need 2 outputs (SDA/SCL) to connect this display!
