LED RGB Super-flux Common anode Piranha - Adafruit 1451
Product information:

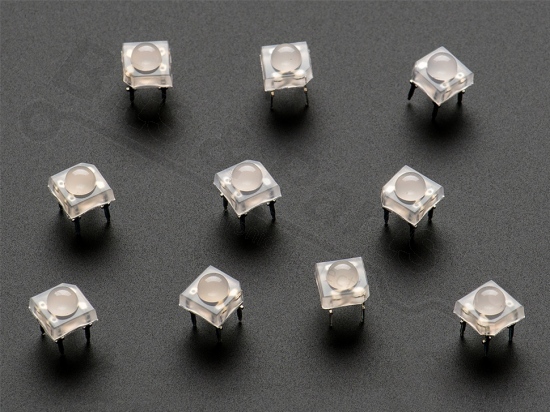

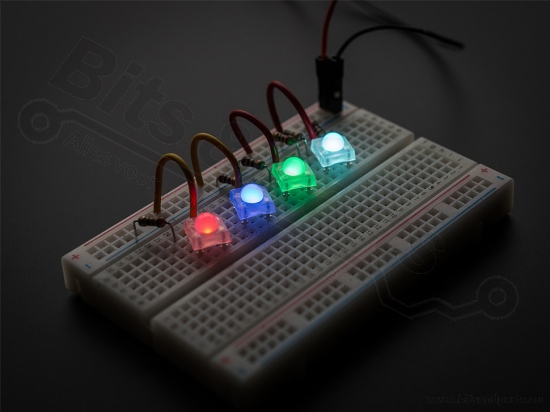

Diffused 5mm tri-color LEDs with separate red, green and blue LED chips inside! Ultra bright indicator or illuminator, and fun to color-swirl. 90 degree viewing angle. You can plug these into a breadboard diagonally.
These are Common-Anode type which means you connect one pin to 5V or so and then tie the other three legs to ground through a resistor.
- 0,3"/7,6mm on each side, square. Sometimes called 'Super flux' or 'Piranha'
- Diffused lens, 90 degree viewing angle
- Red: 620 nm wavelength, Green: 517 nm, Blue: 460 nm
- Red: 1,8-2,2V Forward Voltage, at 20mA current, Green: 3,0-3,3V, -Blue: 3,0-3,3V
- Red: 800 mcd typical brightness, Green: 1500 mcd, Blue: 700 mcd (3000 mcd total)
>
