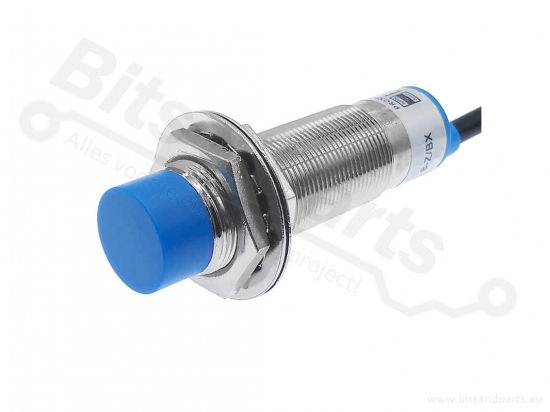

Metal sensor / Distance sensor inductive 8mm LJ18A3-8Z/BX NPN/NO

Product information:

This LJ18A3-8Z/BX inductive metal sensor can measure non-contact whether there is a metal in front of the sensor.

Specifications:

Type: LJ18A3-8Z/BX
Voltage: 6~36VDC
Sensor size: 18mm diameter
Measuring distance: 0~8mm
Contact: NPN / NO

Connections:

Brown -> VCC
Blue -> GND
Black -> Output

Documentation

:
icon_filetype_ino
Programming example (English):
Metal_Proximity_Sensor.ino
icon_filetype_pdf
Datasheet LJ18A3.pdf (English)
