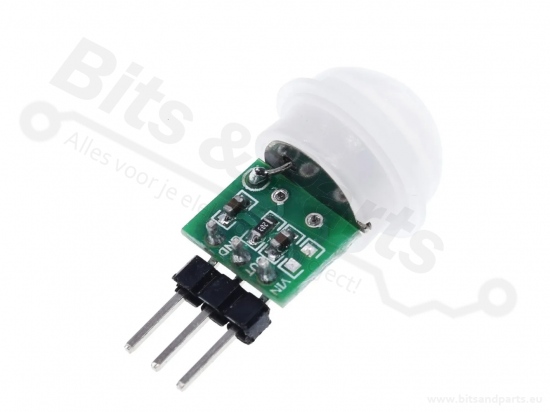

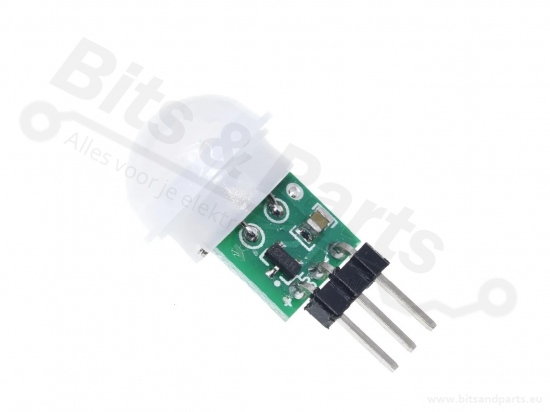

Motion sensor/detector Infrared PIR - AM312

Motion sensor/detector Infrared PIR - AM312

Product information:

Compact mini motion sensor based on an AM312 pyroelectric PIR sensor.

Operating voltage: 2.7-12VDC
Static power consumption: <0.1 mA
Delay time: ~2 seconds
Block time: 2 seconds
Trigger mode: repeatable
Detection range: ≤ 100 degrees cone angle, 3-5 meters
Working temperature: -20°C - +60°C

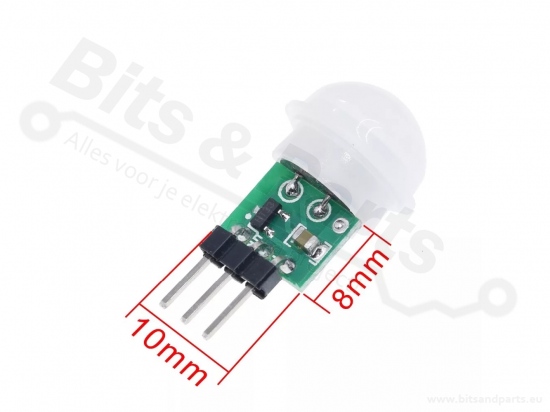

PCB Dimensions: 10mm x 8mm
