Motion sensor/detector Infrared PIR - with relay

Motion sensor/detector Infrared PIR - with relay

Product information:

Mini built-in infrared motion sensor with relay from Velleman.

Features:

- with automatic day/night identification
- adjustable sensitivity and activation time
- for built-in

Specifications:

- switch type: relay
- observation angle: 100°
- detection range: 8 m (@ 22 °C)
- max. load: 800 VA (max. starting current 3.5 A)
- power supply: 180-240 VAC 50 Hz
- Operating temperature: -10 °C to 40 °C
- operating humidity: < 93 % RH
- timer: 5 s, 30 s, 1 min, 3 min, 5 min, 8 min
- sensitivity: < 3 lx to 2000 lx
- cable length: ± 18 cm

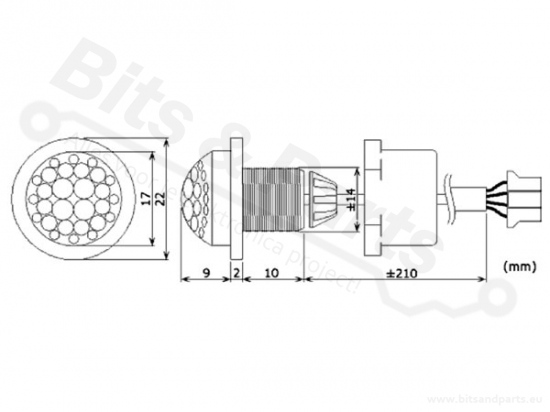

Dimensions:

- visible part: Ø 22 x 10 mm

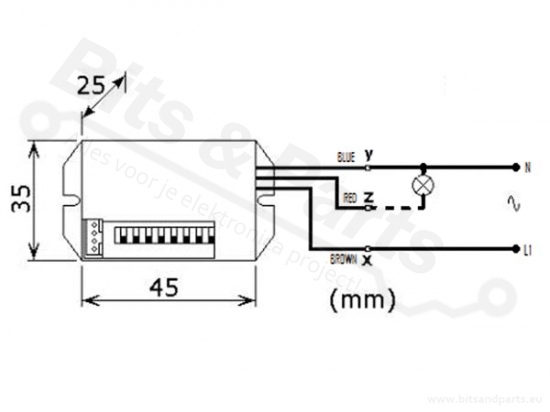

- built-in part (controller): 55 x 25 x 35 mm
- weight: ± 41 g
