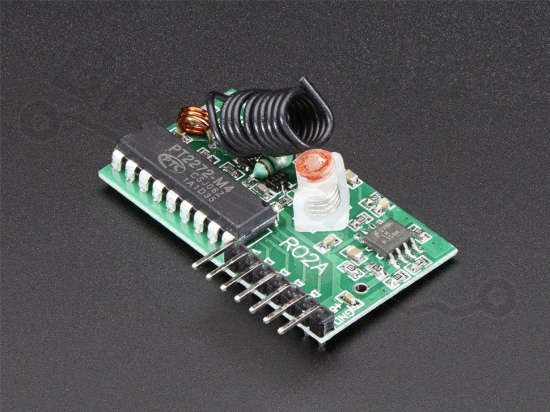

RF Receiver M4 - 315MHz Momentary - Adafruit 1096
Product information:

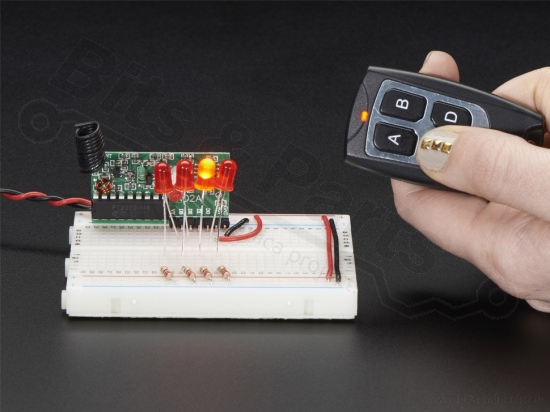

These Simple RF receivers are the easiest way possible to add wireless control, painlessly! There's no programming, configuring or addressing - simply power the receiver with ~5 VDC and press the buttons on our matching RF keyfob remote. When the A button is pressed, it activates the first pin, when the B button is pressed, it activates the second one, and so forth for all four buttons. There's no microcontroller required, its just a simple one-to-one link.
These modules make it easy to control your project once its in an enclosure or from across the room, but there are some things to watch out for. One is that they don't have 'addressing' - if you have multiple receivers in a room, they'll all work at the same time with a single remote. Another is that there's no error checking or bi-directional link - that means the remote doesn't know if the module received the message or not. Third, there are a few different types of receivers and each one looks identical but they're act differently!
- The M4 momentary type acts like a push button - when the A button is held down, the matching pin goes high. When the A button is released, the matching pin goes low. The pins only go high when a button is pressed
It only includes the receiver module, you will also need to pick up a keyfob transmitter. Each receiver also has a VT pin, which will go high if any of the pins are activated. You can sort of use it as an 'interrupt' indicator.
