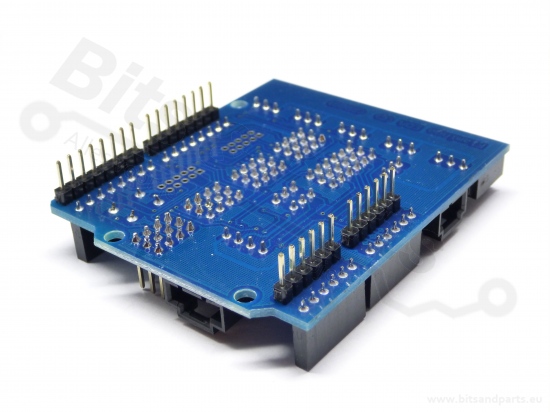

Sensor shield v4 for Arduino Uno/Mega/Duemilanove
Product information:
Sensor shield for the Arduino Uno, Mega and Duemilanove.
All inputs and outputs of the Arduino are passed through to sets of 3 header pins labeled Vcc (V), Ground (G) and Signal (S).
The A0 to A5 analog inputs and outputs are additionally passed through to 3-pin interlock connectors.
For I2C or UARt communication (selectable with jumpers) a separate 4-pin interlock connector is available.
With reset button on the shield.
The shield is stackable so other shields can be placed on top.
>
